Productbeschrijving

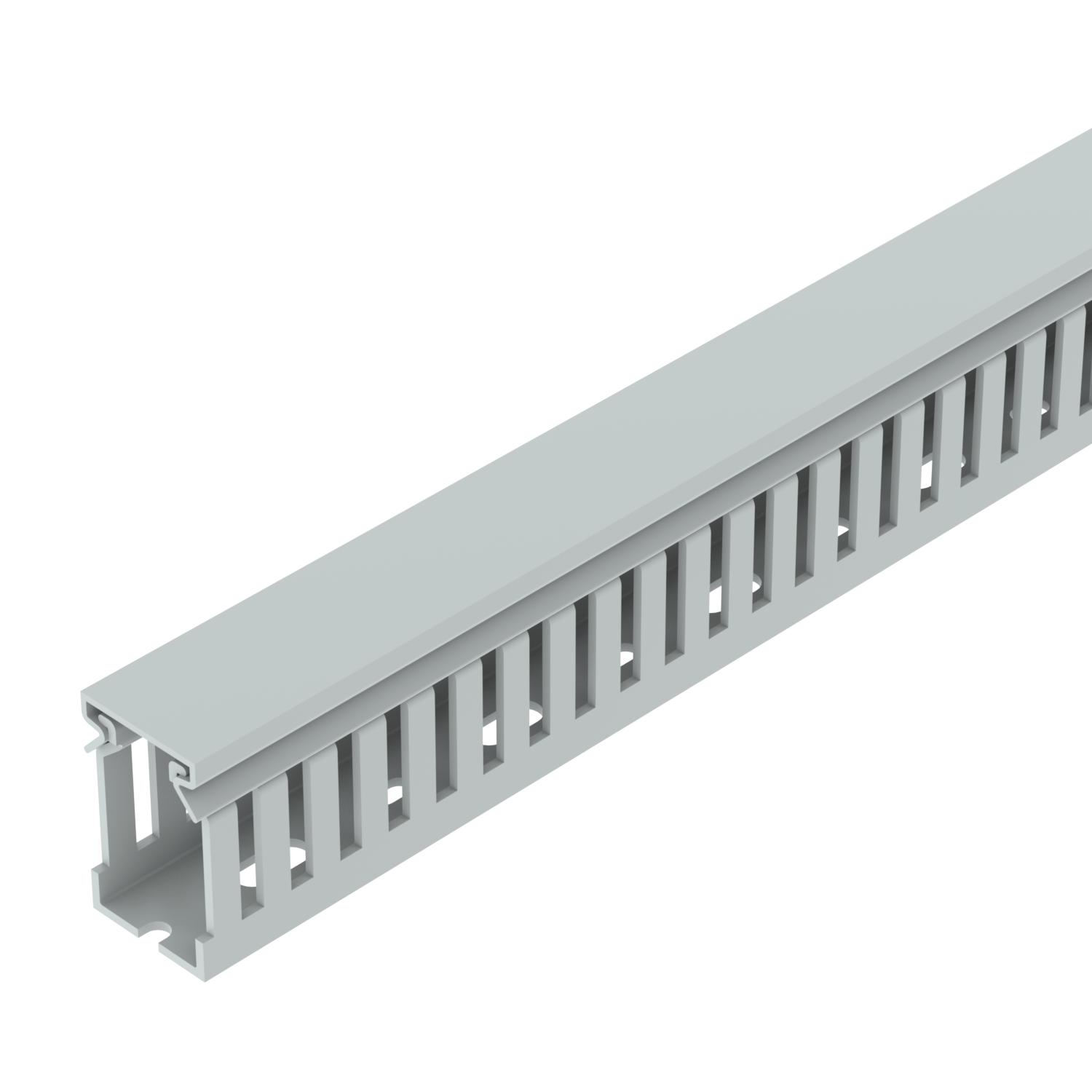

Halogen-free wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. With double-sided adhesive tape on the duct base as a mounting aid. Designed as a metric duct. Retainers are broken out without tools. Special lengths on request.
- Technische gegevens
-
Technische gegevens
Flexibel nee Halogeenvrij ja Kleur lichtgrijs; RAL 7035 Kruipstroomvast ja Materiaal Polycarbonaat/acrylnitriel-butadieen-styrol Met bovenstuk ja Nuttige doorsnede 6,91 cm² Sleufafstand 5,5 mm Sleufbreedte 4,5 mm Temperatuurbereik max. 90 °C Temperatuurbereik min. -25 °C Type bevestiging Bodemperforatie Uitvoering van de zijwand gesleufd zelfblussend ja Afmetingen

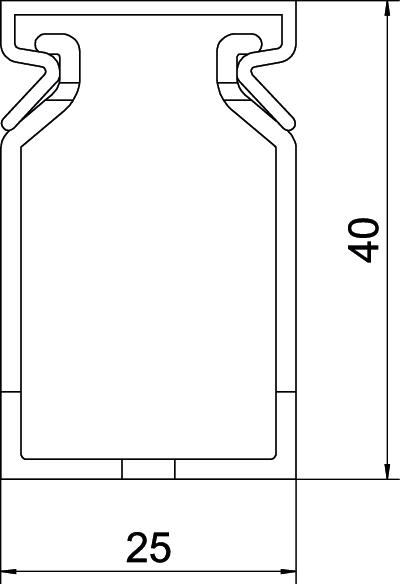

Breedte 25 mm Hoogte 40 mm Lengte 2000 mm - Alle typen
- Downloads
-
Specificatieblad LK4H 40025 / 6132544 , 0.34MB , pdfConformiteitsverklaring LK4H 40025 / 6132544 , 0.15MB , pdfREACH Conformiteitsverklaring LK4H 40025 / 6132544 , 0.12MB , pdfRoHS Conformiteitsverklaring LK4H 40025 / 6132544 , 0.13MB , pdfMontagehandleiding Montagehandleiding bedradingskoker LK4/LK4H/LKV/LKVH , 5.49MB , pdf
