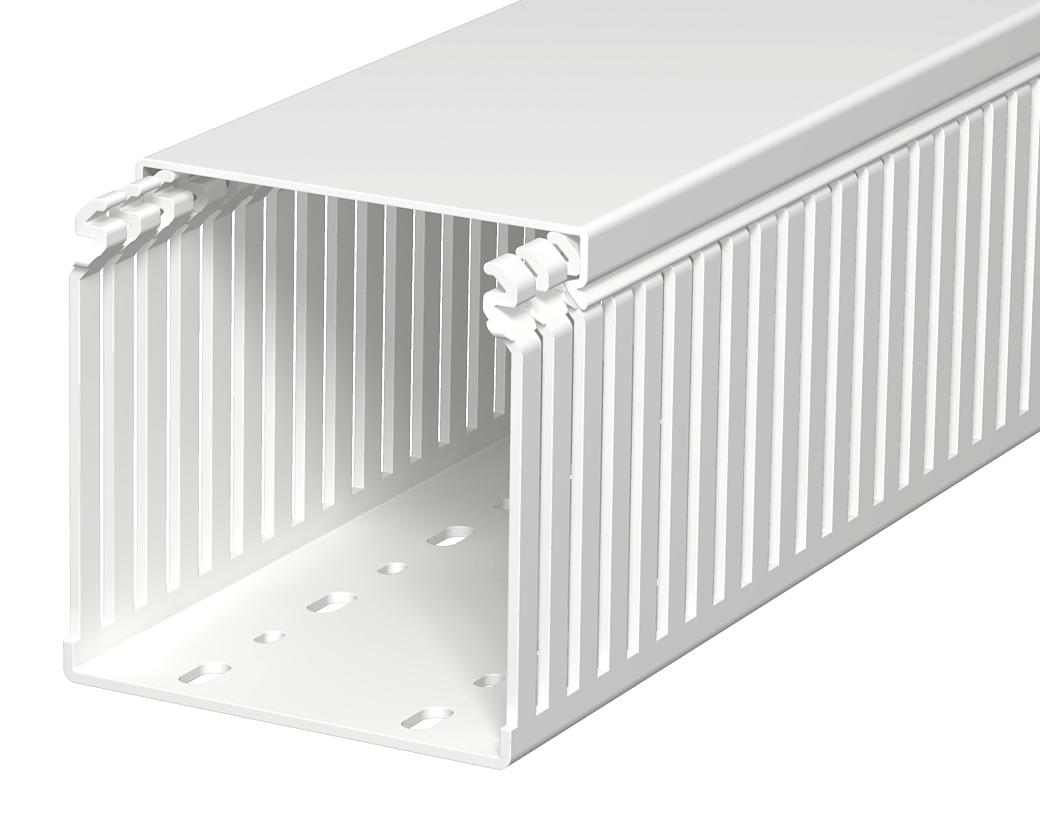

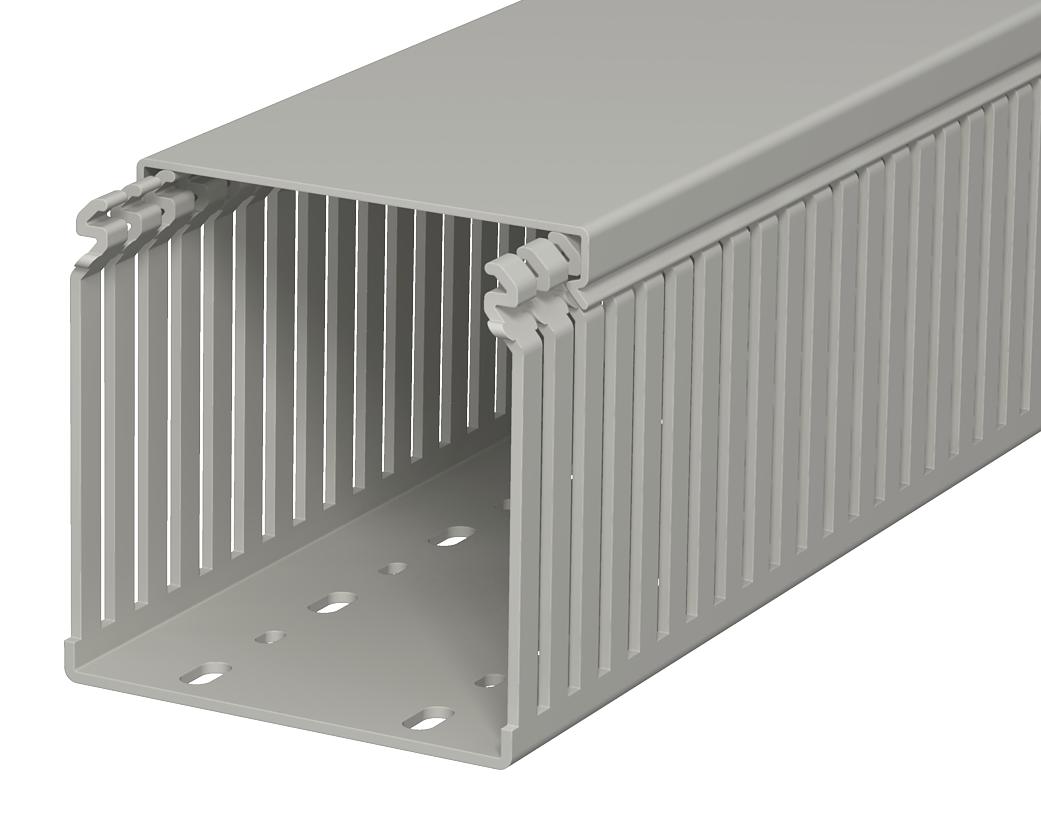

Bedradingskoker, type LKV 100100

Art.nr. 6178341 | EAN 4012196011162

6178341 / LKV 100100
2000 mm
100 mm
100 mm
Bodemperforatie
steengrijs; RAL 7030
Terug naar overzicht
Productbeschrijving
Productbeschrijving
Bedradingskoker conform NEN-EN 50085-2-3 incl. deksel en bodemperforatie. Speciale lengte op aanvraag
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Duitsland
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • UKCA conformiteitsverklaring
Technische gegevens

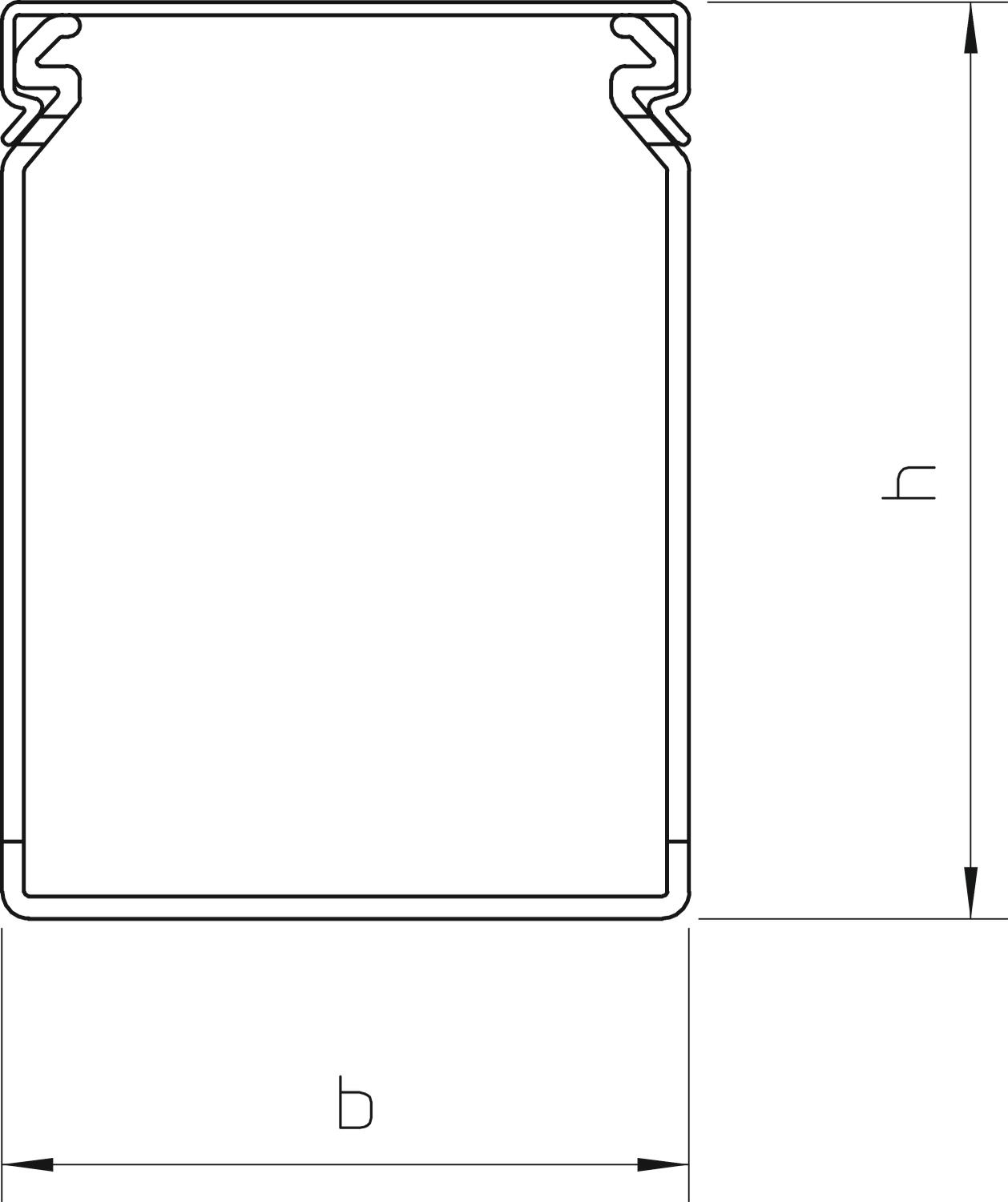

Afmetingen

Breedte 100 mm
CO2-voetafdruk (GWP) van wieg tot poort 2,2412 kg CO₂e / 1 Meter
Dimensie 100x100x2000
Flexibel nee
Halogeenvrij nee
Hoogte 100 mm
Kleur steengrijs; RAL 7030
Lengte 2000 mm
Materiaal Polyvinylchloride
Met bovenstuk ja
Nuttige doorsnede 89,36 cm²
Sleufafstand 12,5 mm
Sleufbreedte 5 mm
Temperatuurbereik max. 60 °C
Temperatuurbereik min. -5 °C
Type bevestiging Bodemperforatie
Uitvoering van de zijwand gesleufd
zelfblussend ja
Alle typen

Alle typen

Type Lengte Breedte Hoogte Type bevestiging Kleur Art.nr. Aantal kl. VKE
LKV 100100 2000 mm 100 mm 100 mm Bodemperforatie steengrijs; RAL 7030 6178341
8 m
Toebehoren

Systeemtoebehoren

Producten Type Art.nr. Aantal kl. VKE
Draadhouder voor type LK4 en LK4 N Draadhouder voor type LK4 en LK4 N LK4 H 6178092
100 Stuks
Draadhouderbrug voor type LKV en LKV/N Draadhouderbrug voor type LKV en LKV/N LKV H 6178349
100 Stuks
Deksel LKV D 100 Deksel LKV D 100 LKV D 100 6178512
12 m

Montagetoebehoren

Producten Type Art.nr. Aantal kl. VKE
Splijtnagel, KSN 1 Splijtnagel, KSN 1 KSN1 6178520
100 Stuks
Splijtnagel, KSN 22 Splijtnagel, KSN 22 KSN22 6178525
100 Stuks
Kunststof nietapparaat KNW1 Kunststof nietapparaat KNW1 KNW1 6178527
1 Stuks
Kunststof nietapparaat KNW2 Kunststof nietapparaat KNW2 KNW2 6178529
1 Stuks
Ontkoppelingstang Ontkoppelingstang AKZ2 6178533
1 Stuks
Afstandshouder Afstandshouder AH1 6178540
100 Stuks
Afstandshouder Afstandshouder AH2 6178542
100 Stuks
