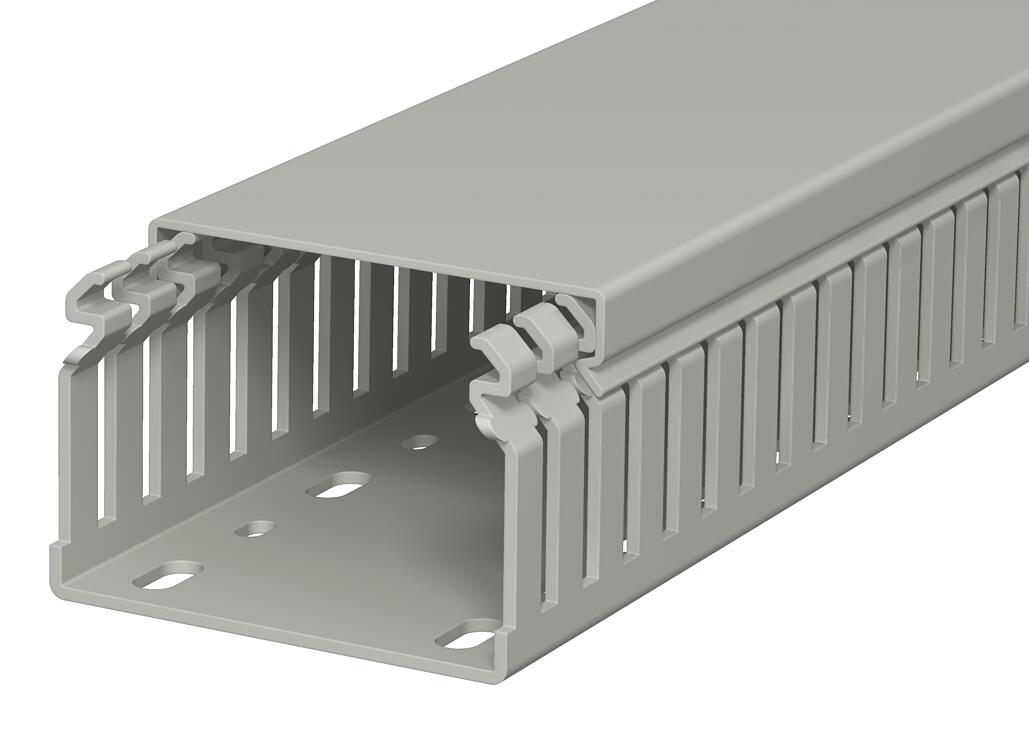

Bedradingskoker, type LKV 50075

Art.nr. 6178316 | EAN 4012196010073

6178316 / LKV 50075
2000 mm
75 mm
50 mm
Bodemperforatie
steengrijs; RAL 7030
Terug naar overzicht
Productbeschrijving
Productbeschrijving
Bedradingskoker conform NEN-EN 50085-2-3 incl. deksel en bodemperforatie. Speciale lengte op aanvraag
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Duitsland
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • UKCA conformiteitsverklaring
Technische gegevens

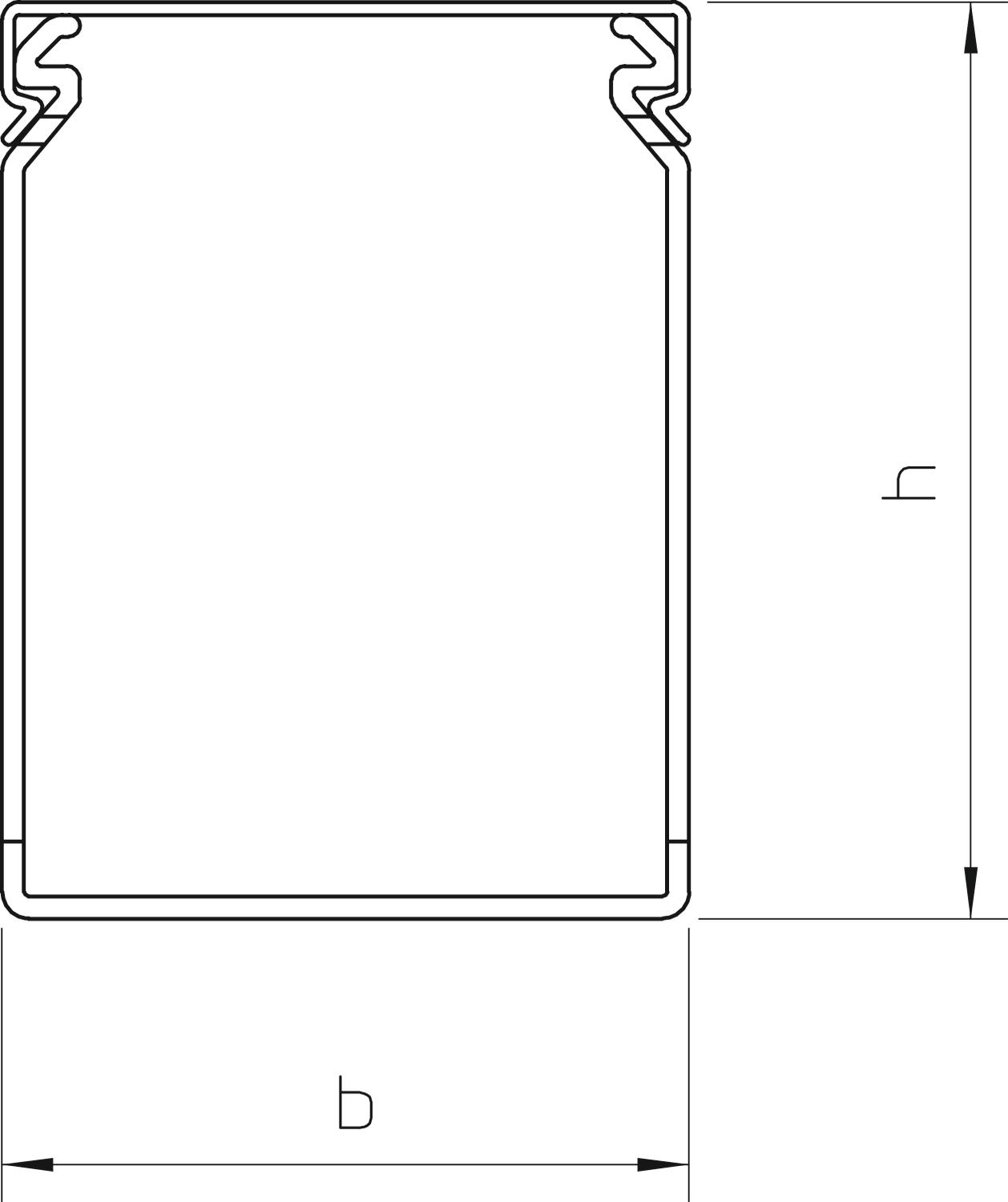

Afmetingen

Breedte 75 mm
CO2-voetafdruk (GWP) van wieg tot poort 1,1629 kg CO₂e / 1 Meter
Dimensie 50x75x2000
Flexibel nee
Halogeenvrij nee
Hoogte 50 mm
Kleur steengrijs; RAL 7030
Lengte 2000 mm
Materiaal Polyvinylchloride
Met bovenstuk ja
Nuttige doorsnede 31,6 cm²
Sleufafstand 12,5 mm
Sleufbreedte 5 mm
Temperatuurbereik max. 60 °C
Temperatuurbereik min. -5 °C
Type bevestiging Bodemperforatie
Uitvoering van de zijwand gesleufd
zelfblussend ja
Alle typen

Alle typen

Type Lengte Breedte Hoogte Type bevestiging Kleur Art.nr. Aantal kl. VKE
LKV 50075 2000 mm 75 mm 50 mm Bodemperforatie steengrijs; RAL 7030 6178316
24 m
Toebehoren

Systeemtoebehoren

Producten Type Art.nr. Aantal kl. VKE
Draadhouder voor type LK4 en LK4 N Draadhouder voor type LK4 en LK4 N LK4 H 6178092
100 Stuks
Draadhouderbrug voor type LKV en LKV/N Draadhouderbrug voor type LKV en LKV/N LKV H 6178349
100 Stuks

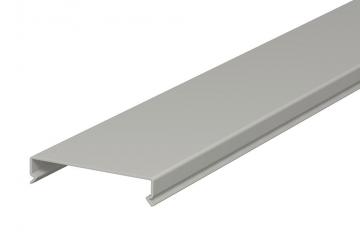

Deksel LKV D 75 Deksel LKV D 75 LKV D 75 6178510
12 m

Montagetoebehoren

Producten Type Art.nr. Aantal kl. VKE
Splijtnagel, KSN 1 Splijtnagel, KSN 1 KSN1 6178520
100 Stuks
Splijtnagel, KSN 22 Splijtnagel, KSN 22 KSN22 6178525
100 Stuks
Kunststof nietapparaat KNW1 Kunststof nietapparaat KNW1 KNW1 6178527
1 Stuks
Kunststof nietapparaat KNW2 Kunststof nietapparaat KNW2 KNW2 6178529
1 Stuks
Ontkoppelingstang Ontkoppelingstang AKZ2 6178533
1 Stuks
Afstandshouder Afstandshouder AH1 6178540
100 Stuks
Afstandshouder Afstandshouder AH2 6178542
100 Stuks
