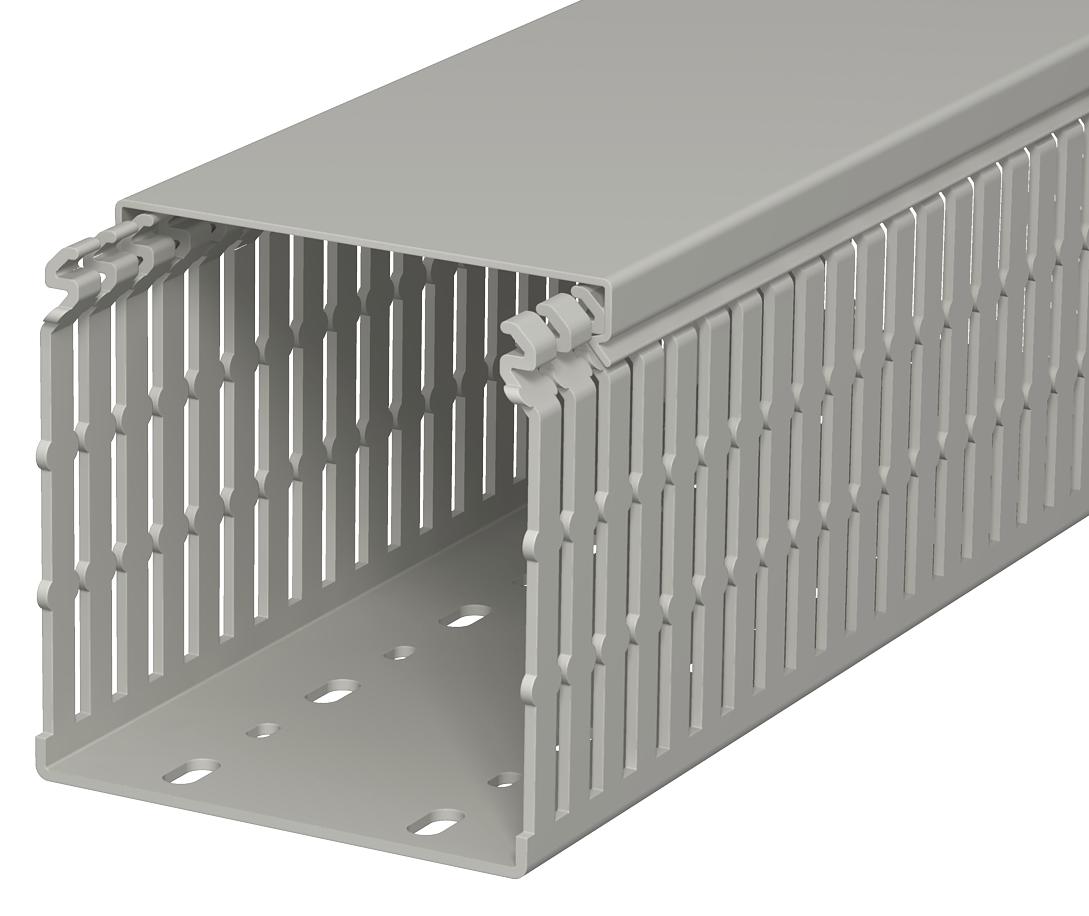

Bedradingskoker, type LKV N 100100

Art.nr. 6178441 | EAN 4012196015184

6178441 / LKV N 100100
2000 mm
100 mm
100 mm
Bodemperforatie
steengrijs; RAL 7030
Terug naar overzicht
Productbeschrijving
Productbeschrijving
Bedradingskoker conform NEN-EN 50085-2-3 incl. deksel en bodemperforatie, nokken in de zijgleuven voorkomen dat de kabels uit de koker vallen.

  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Duitsland
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • UKCA conformiteitsverklaring
Technische gegevens

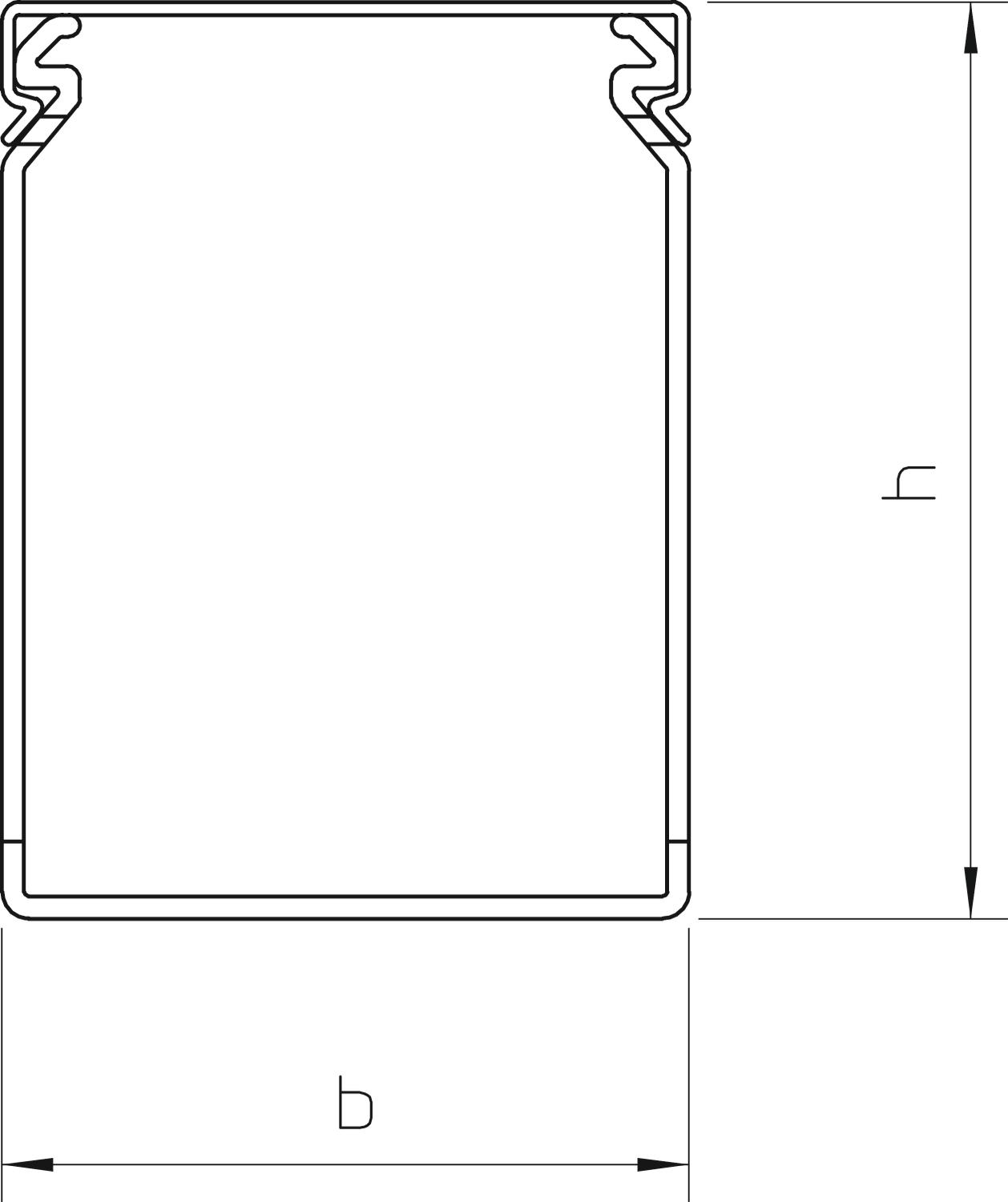

Afmetingen

Breedte 100 mm
CO2-voetafdruk (GWP) van wieg tot poort 2,3422 kg CO₂e / 1 Meter
Dimensie 100x100x2000
Flexibel nee
Halogeenvrij nee
Hoogte 100 mm
Kleur steengrijs; RAL 7030
Lengte 2000 mm
Materiaal Polyvinylchloride
Met bovenstuk ja
Nuttige doorsnede 89,36 cm²
Sleufafstand 12,5 mm
Sleufbreedte 5 mm
Temperatuurbereik max. 60 °C
Temperatuurbereik min. -5 °C
Type bevestiging Bodemperforatie
Uitvoering van de zijwand gesleufd
zelfblussend ja
Alle typen

Alle typen

Type Lengte Breedte Hoogte Type bevestiging Kleur Art.nr. Aantal kl. VKE
LKV N 100100 2000 mm 100 mm 100 mm Bodemperforatie steengrijs; RAL 7030 6178441
8 m
Toebehoren

Systeemtoebehoren

Producten Type Art.nr. Aantal kl. VKE
Draadhouder voor type LK4 en LK4 N Draadhouder voor type LK4 en LK4 N LK4 H 6178092
100 Stuks
Draadhouderbrug voor type LKV en LKV/N Draadhouderbrug voor type LKV en LKV/N LKV H 6178349
100 Stuks

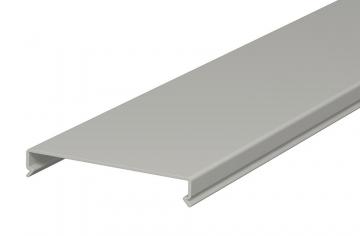

Deksel LKV D 100 Deksel LKV D 100 LKV D 100 6178512
12 m

Montagetoebehoren

Producten Type Art.nr. Aantal kl. VKE
Splijtnagel, KSN 1 Splijtnagel, KSN 1 KSN1 6178520
100 Stuks
Splijtnagel, KSN 22 Splijtnagel, KSN 22 KSN22 6178525
100 Stuks
Kunststof nietapparaat KNW1 Kunststof nietapparaat KNW1 KNW1 6178527
1 Stuks
Kunststof nietapparaat KNW2 Kunststof nietapparaat KNW2 KNW2 6178529
1 Stuks
Ontkoppelingstang Ontkoppelingstang AKZ2 6178533
1 Stuks
Afstandshouder Afstandshouder AH1 6178540
100 Stuks
Afstandshouder Afstandshouder AH2 6178542
100 Stuks
