- Productbeschrijving
-

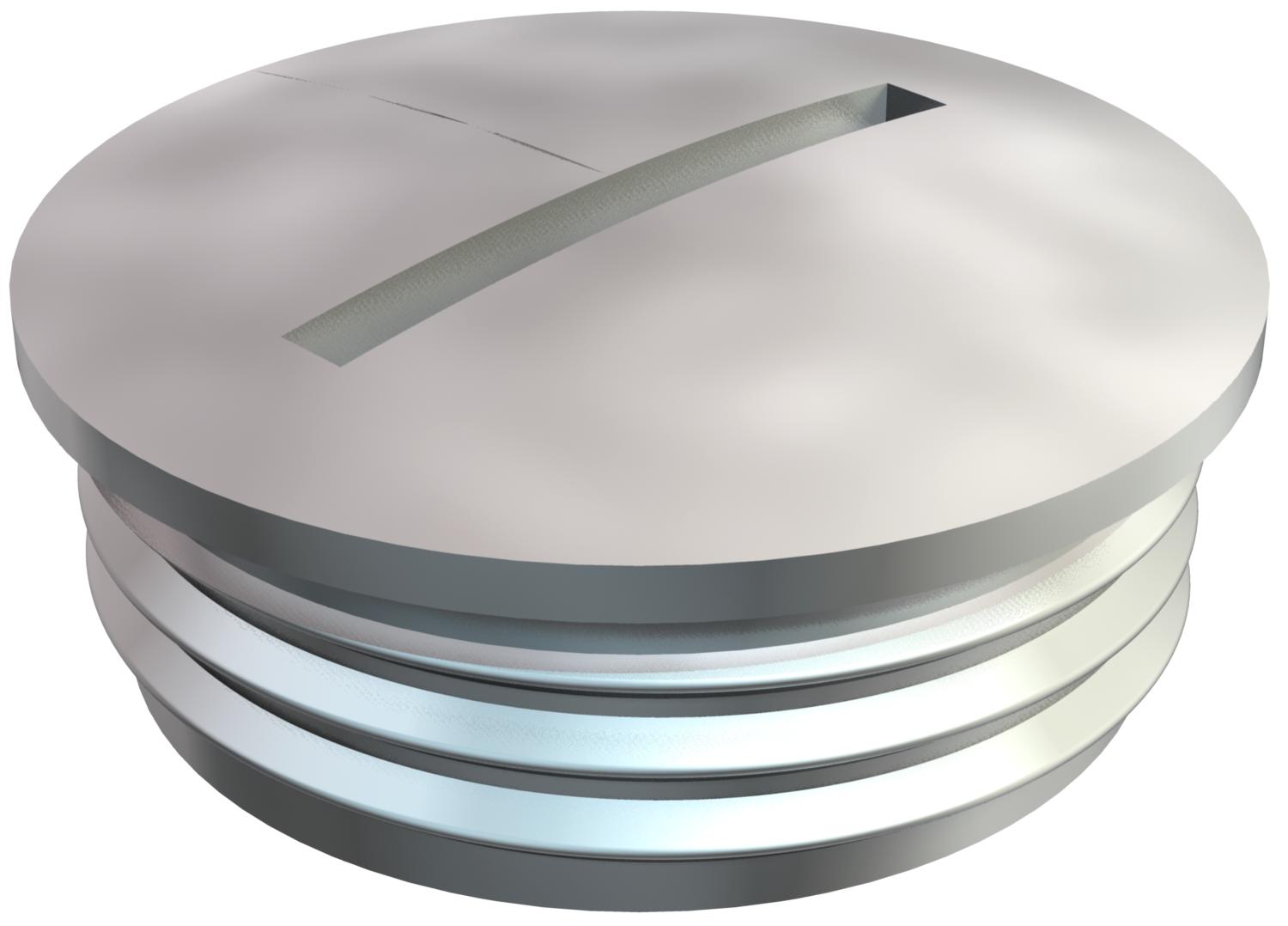

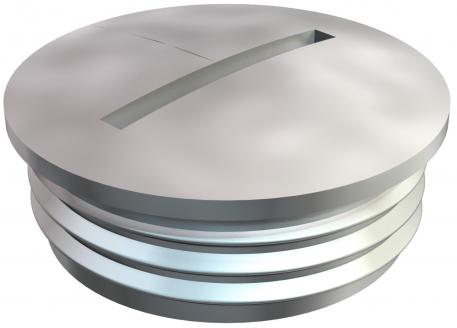

ProductbeschrijvingBlindstop N volgens DIN 46320, met Pg-schroefdraad volgens DIN 40430.
In combinatie met afdichtring type 107, 170 of 171 beschermingsklasse IP 68 (5 bar/1h).
Afdichtring niet inbegrepen.
* Prijzen volgens DEL-notering.
-
- Technische gegevens
-
Technische gegevens

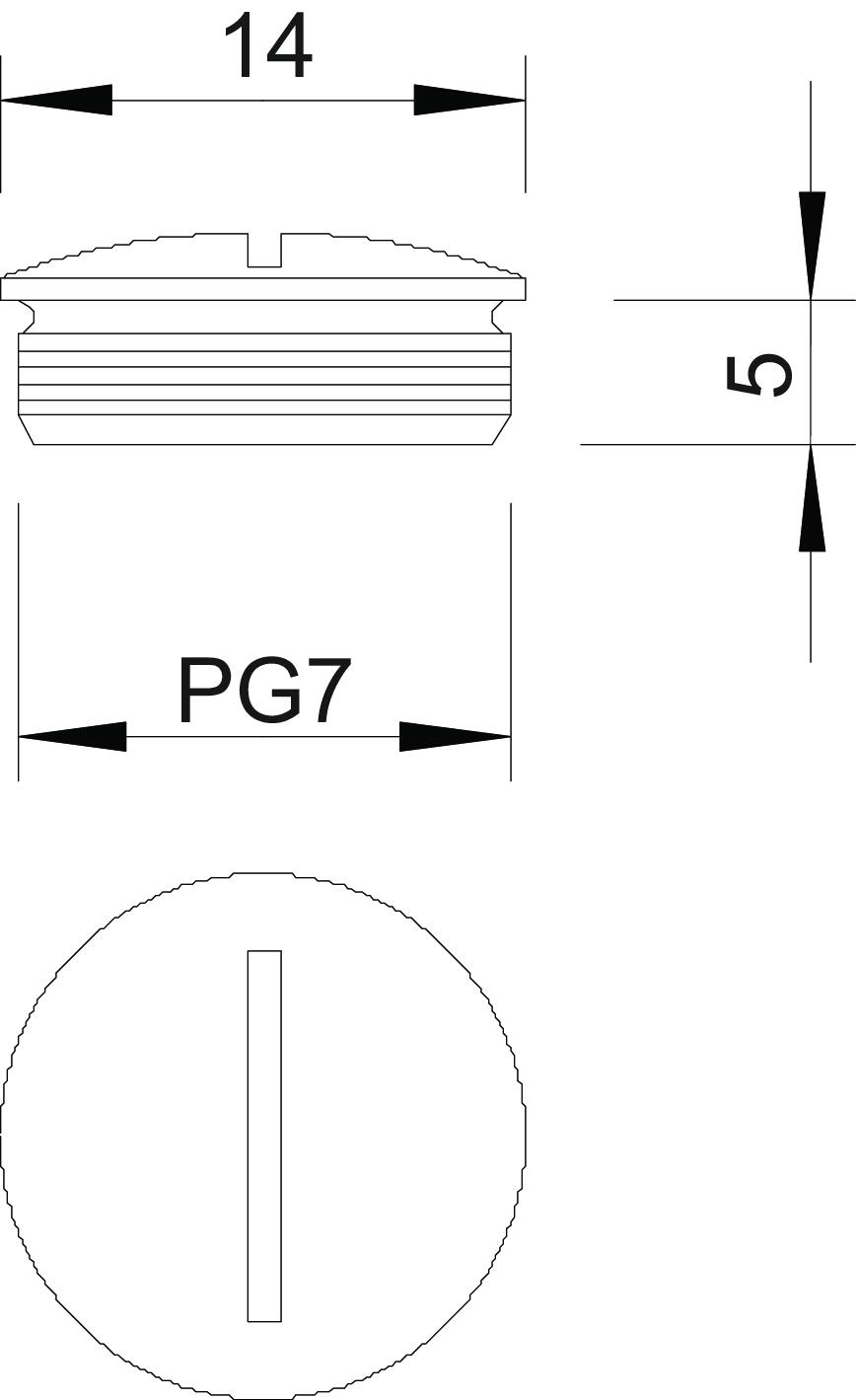

Beschermingsgraad IP68 CO2-voetafdruk (GWP) van wieg tot poort 0,0145 kg CO₂e / 1 Stuk Dimensie PG7 Explosiebeveiligd nee Glasvezelversterkt nee Halogeenvrij ja Maat D 14 mm Maat L 5 mm Materiaal messing Nominale schroefdraadmaat metrisch/PG 7 Oppervlak vernikkeld Schroefdraad Pg 7 Slagvast nee Soort schroefdraad PG Spoed 1,27 mm voor Ex-zone gas zonder voor Ex-zone stof zonder - Alle typen
- Downloads
-
Specificatieblad 168 MS PG 7 / 2090074 , 0.20MB , pdfEU Conformiteitsverklaring 168 MS PG 7 / 2090074 , 0.12MB , pdfUK Conformiteitsverklaring 168 MS PG 7 / 2090074 , 0.09MB , pdfREACH Conformiteitsverklaring 168 MS PG 7 / 2090074 , 0.13MB , pdfRoHS Conformiteitsverklaring 168 MS PG 7 / 2090074 , 0.13MB , pdf
