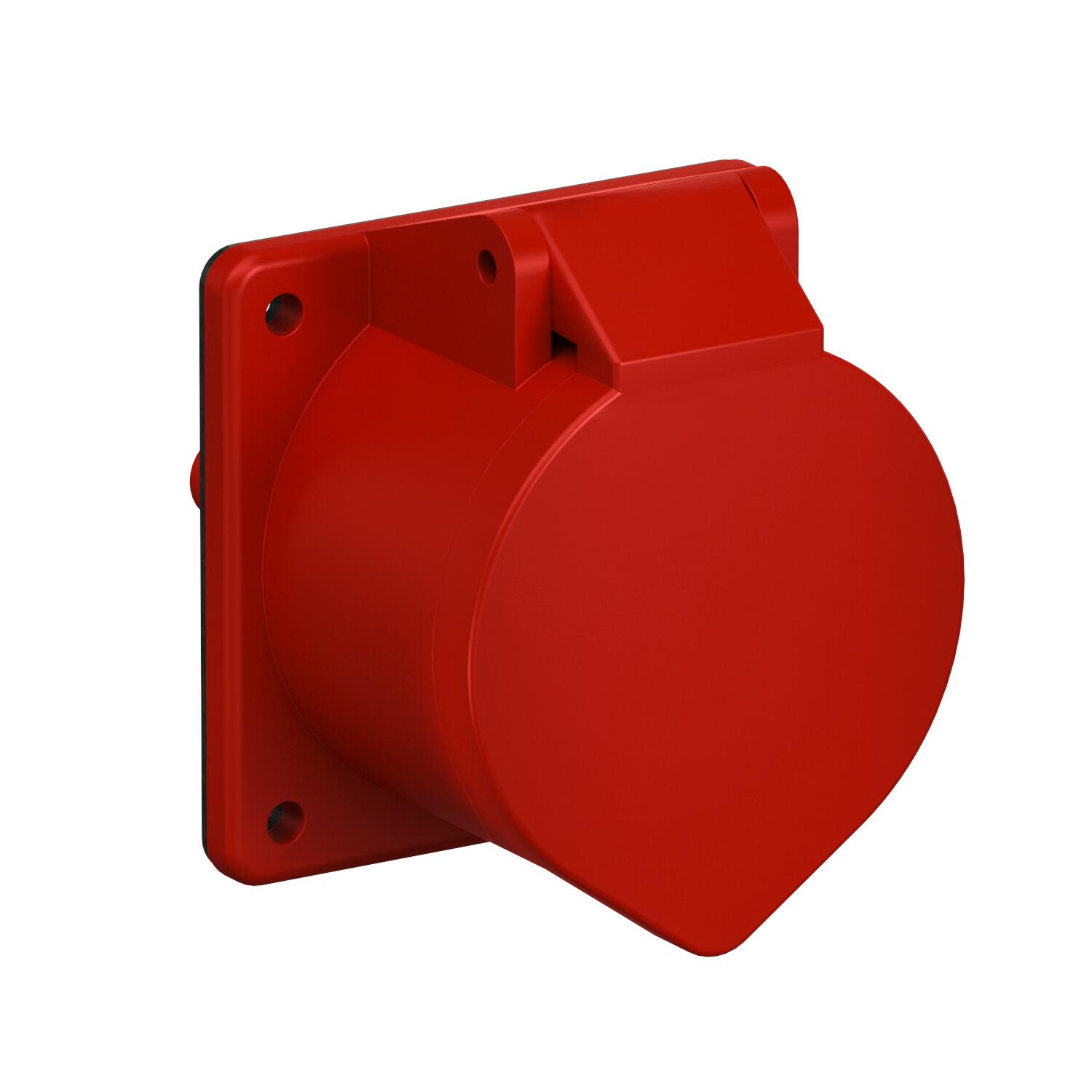

CEE-insteekklem, 16 A

Art.nr. 6109874 | EAN 4012195125594

Terug naar overzicht
Productbeschrijving
Productbeschrijving
CEE-contactdoos met 60 mm bevestigingsrail 3-polig+N+PE, 400 V, 16 A, 6 h.
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
Technische gegevens

Technische gegevens

Aansluittechniek Schroefloze klem
Aantal polen 5
Beschermingsgraad IP44
Boorgatafstand horizontaal 60 mm
Boorgatafstand verticaal 60 mm
Breedte 75 mm
CO2-voetafdruk (GWP) van wieg tot poort 0,1064 kg CO2e / 1 Stuk

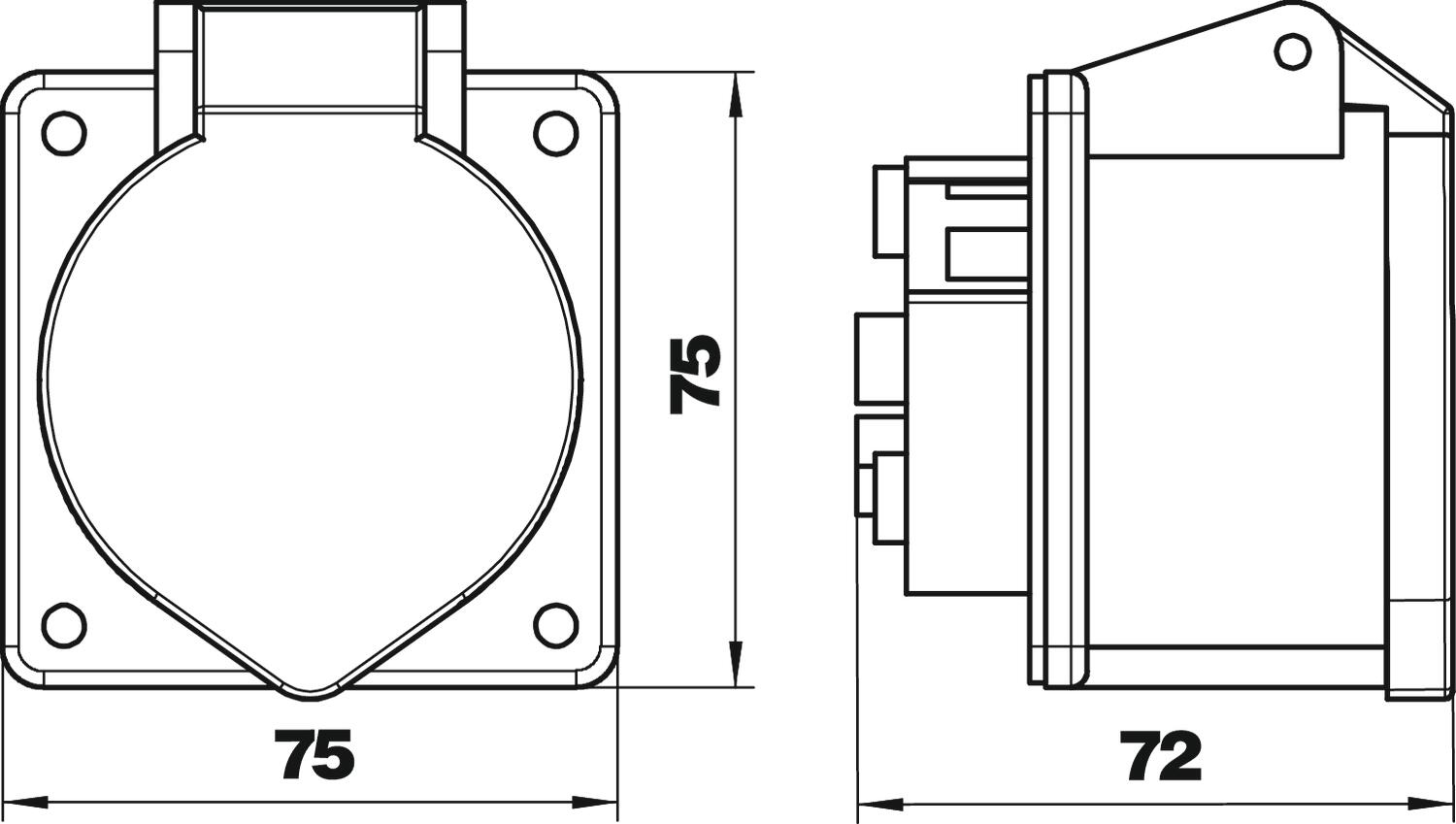

Dimensie 75x75x72
Flensmaat horizontaal 75 mm
Flensmaat verticaal 75 mm
Hoogte 75 mm
Kabelinvoer overige
Lengte 72 mm
Militaire uitvoering nee
Nominale spanning 400 V
Nominale stroom 16 A
Spanning conform NEN-EN-IEC 60309-2 400 V (50+60 Hz) rood
Steekrichting Recht
Alle typen

Alle typen

Type Art.nr. Aantal kl. VKE
CEE-16A 6109874
1 Stuks
Downloads

Download

Download

EU Conformiteitsverklaring CEE-16A / 6109874 , 0.12MB , pdf
Download

CEE-16A / 6109874
