Let op: Dit artikel is een uitloopartikel. U kunt het vervangende artikel hier vinden: 6036974 / Deksel bocht 90° A2

Deksel voor 90° bocht A2

Art.nr. 7134916 | EAN 4012196254958

1 mm
Terug naar overzicht
Productbeschrijving
Productbeschrijving
Deksel voor 90°-bocht met voorgemonteerde draaigrendels.
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • Kabelgoot, zijhoogte 35 mm
  • Kabelgoot, zijhoogte 60 mm
  • Kabelgoot, zijhoogte 85 mm
  • Kabelgoot, zijhoogte 110 mm
Technische gegevens

Technische gegevens

Aantal draaigrendels 3 St.

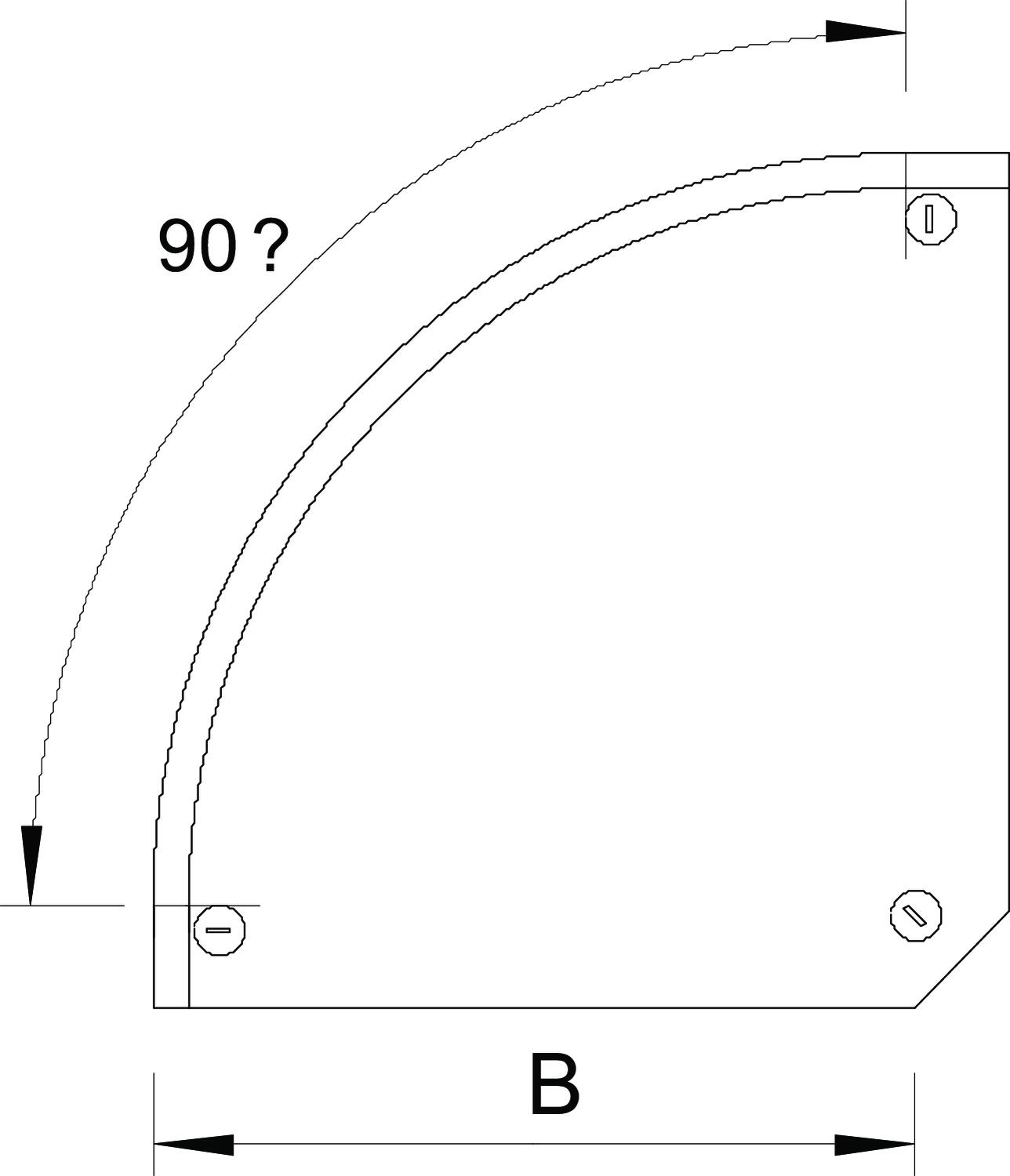

Afbuiging (hoek) 90°
Afm. H 15 mm
Breedte 8 in
Breedte 200 mm
Dimensie B200mm
Functiebehoud nee
Geschikt voor draadgoot nee
Geschikt voor kabelgoot ja
Geschikt voor kabelladder ja
Hoogte 35 mm
Kleur roestvrij staal
Maat B 200 mm
Materiaal Roestvast staal 1.4301
Oppervlak blank, nabehandeld
Plaatdikte 1 mm
Plaatdikte 0,04 in
Richtingsverandering Horizontaal
Roestvast staal, gebeitst nee
Scharnierend nee
Type bevestiging Draaigrendel
Alle typen

Alle typen

Type Breedte Plaatdikte Art.nr. Aantal kl. VKE
DFB 90 200 A2 200 mm 1 mm 7134916
1 Stuks
DFB 90 300 A2 300 mm 1 mm 7134924
1 Stuks
Downloads

Download

EU Conformiteitsverklaring DFB 90 200 A2 / 7134916 , 0.12MB , pdf
Download

Download

DFB 90 200 A2 / 7134916
