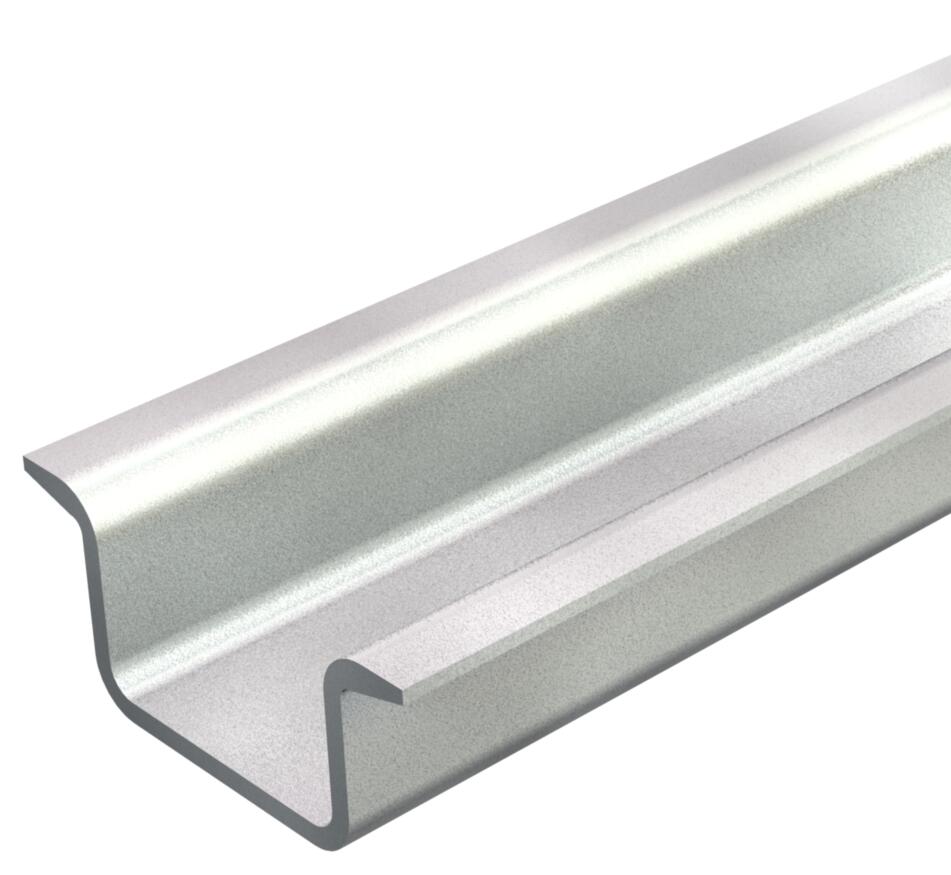

DIN-rail, geperforeerd GTP

Art.nr. 1115553 | EAN 4012195045076

1115553 / 2069 15 2.2 GTP
2000 mm
ongeperforeerd
Staal
galvanisch verzinkt, transparant gepassiveerd
Terug naar overzicht
Productbeschrijving
Productbeschrijving
DIN-rail 35 x 15 mm conform NEN-EN-IEC 60715 (voorheen DIN EN 50022).
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • RoHS conform
  • Sleufbreedte 35 mm
Technische gegevens

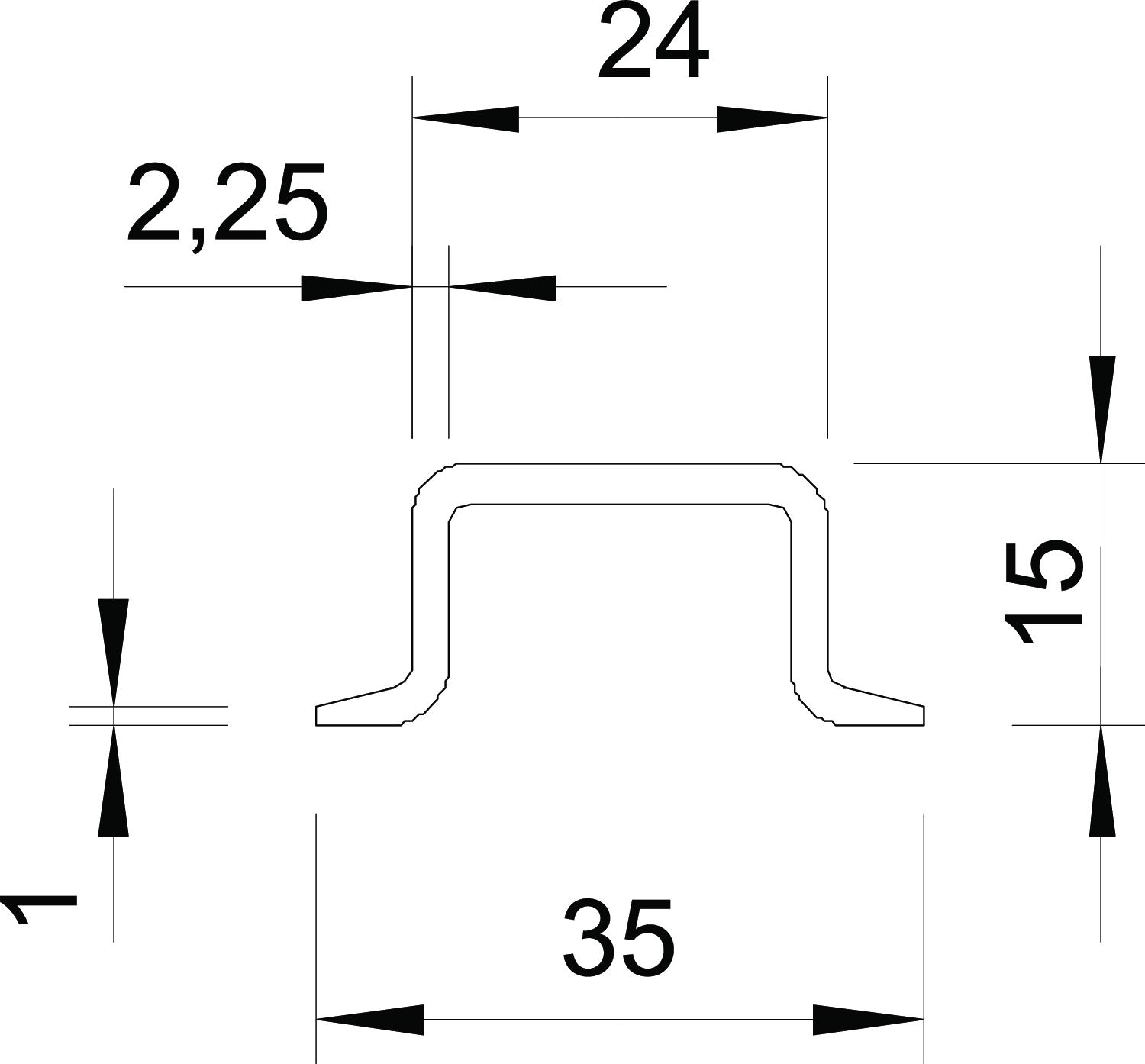

Afmetingen

Breedte 35 mm
Bundel 20 m
CO2-voetafdruk (GWP) van wieg tot poort 1,6356 kg CO₂e / 1 Meter
Dimensie 2000x35x15
Gatvorm (ETIM) zonder
Hoogte 15 mm
Lengte 2000 mm
Materiaal Staal
Materiaaldikte 2,25 mm
Oppervlak galvanisch verzinkt, transparant gepassiveerd
Uitvoering ongeperforeerd
Uitvoering rails Draagrail DIN EN 60715
Alle typen

Alle typen

Type Lengte Uitvoering Materiaal Oppervlak Art.nr. Aantal kl. VKE
2069 15 2.2 GTP 2000 mm ongeperforeerd Staal galvanisch verzinkt, transparant gepassiveerd 1115553
2 m
