Draadgoot GR-Magic® 35 A4

Art.nr. 6000090 | EAN 4012195360773

Art.nr. / Type
Terug naar overzicht
Productbeschrijving
Productbeschrijving

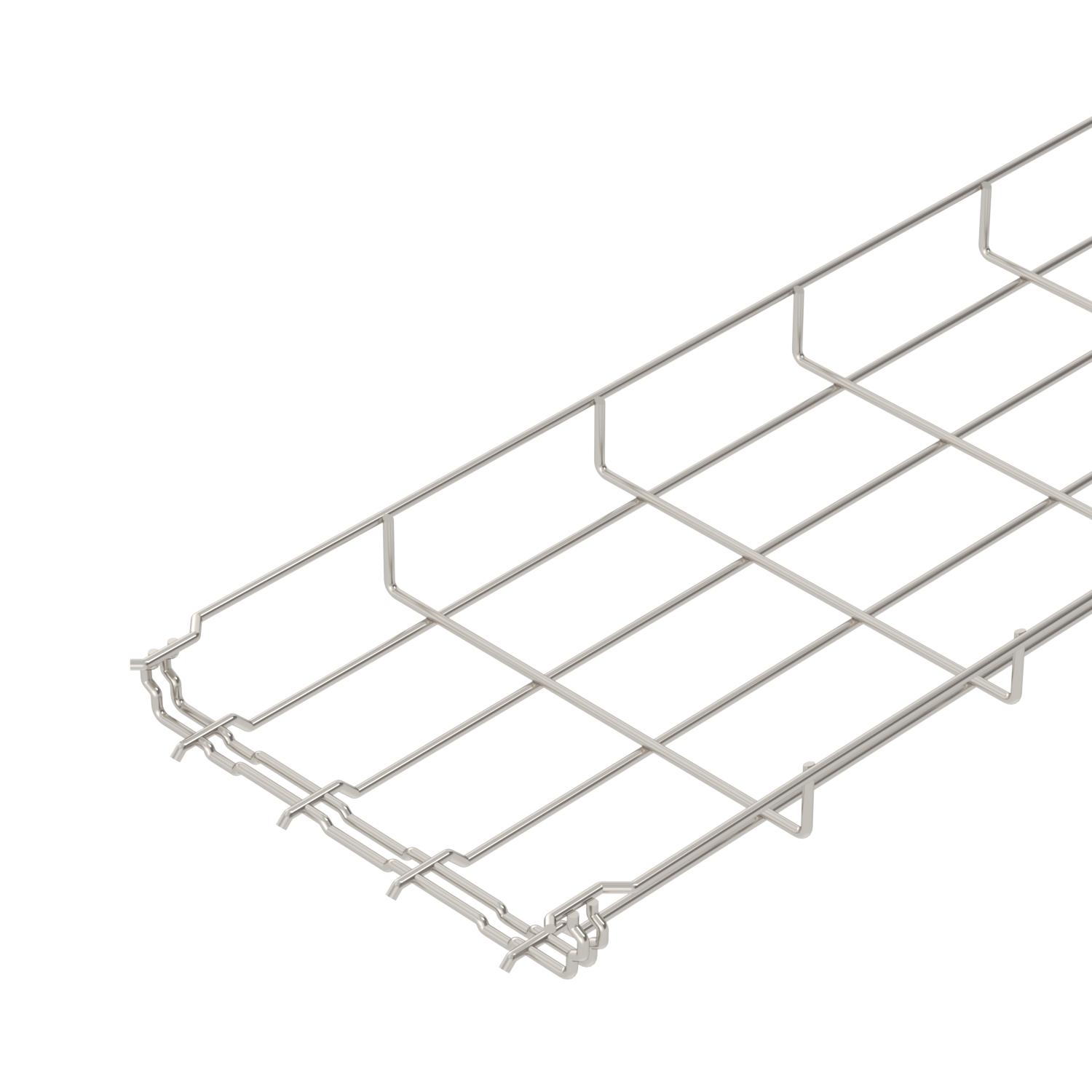

Draadgoot met aangevormde verbinder in de hoogte 35 mm.

Magnetische afschermingsdemping zonder deksel 15 dB, met deksel 25 dB.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Duitsland
  • RINA 1861, Ship Classification, Certification and Services
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
Technische gegevens

Technische gegevens

Belastingstesttype conform IEC 61537 Type II
Breedte 7,87 in
Breedte 200 mm
CO2-voetafdruk (GWP) van wieg tot poort 3,8725 kg CO2e / 1 Meter

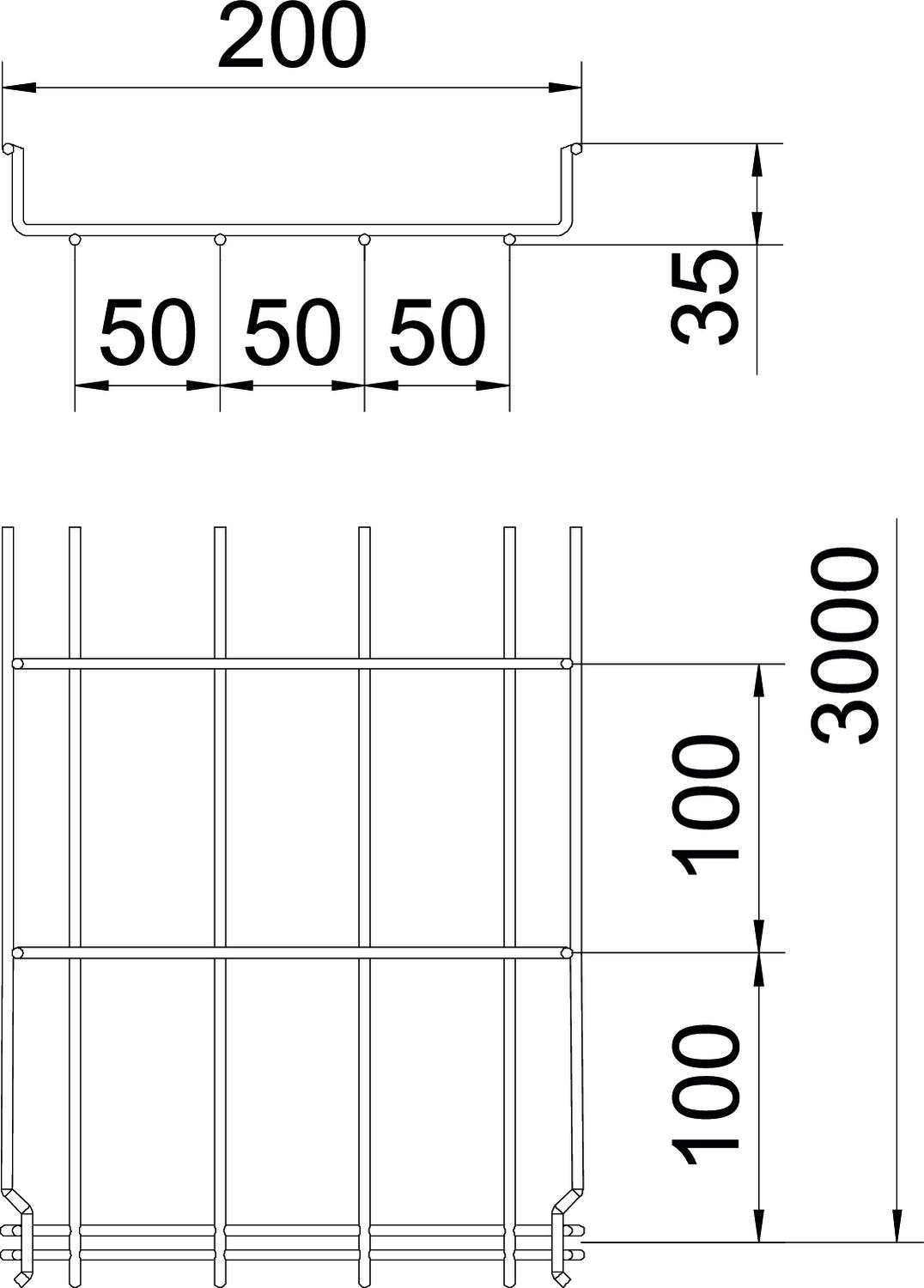

Dimensie 35x200x3000
Draaddiameter 3,9 mm
Functiebehoud nee
Geïntegreerd scheidingsschot zonder
Hoogte 35 mm
Hoogte 1,38 in
Kleur roestvrij staal
Lengte 3000 mm
Maat B 200 mm
Materiaal Roestvast staal 1.4401
Nuttige doorsnede 7000 mm²
Nuttige doorsnede 50,1 cm²
Oppervlak blank, nabehandeld
Profielvorm U-vorm
Roestvast staal, gebeitst ja
Schroefloze verbinder ja
Steunafstand 1,0 m 0,3 kN/m
Steunafstand 1,5 m 0,14 kN/m
Steunafstand 2,0 m 0,1 kN/m
Type verbinder kabeldraagsysteem Klikbevestiging
Uitvoering verbinder geïntegreerde verbinder
Verspanuitvoering nee

Technische gegevens

Belastingsdiagram draadgoot GR-Magic type GRM 35

Belastingsdiagram draadgoot GR-Magic type GRM 35
  • Toegestane kabelgoot-/kabelladderbelasting in kN/m zonder manlast Toegestane kabelgoot-/kabelladderbelasting in kN/m zonder manlast
  • Steunafstand in m Steunafstand in m
  • Zijkantdoorbuiging in mm bij toegestane last in kN/m Zijkantdoorbuiging in mm bij toegestane last in kN/m
  • Belastingschema bij testmethode Belastingschema bij testmethode
  • Belastingscurve met kabelgoot-/kabelladderbreedte in mm Belastingscurve met kabelgoot-/kabelladderbreedte in mm
  • Zijkantdoorbuigingscurve afhankelijk van de steunafstand Zijkantdoorbuigingscurve afhankelijk van de steunafstand
Alle typen

Alle typen

Type Lengte Breedte Hoogte Draaddiameter Nuttige doorsnede Functiebehoud Art.nr. Aantal kl. VKE
GRM 35 200 A4 3000 200 35 3,9 50,1 nee 6000090
3 m
Toebehoren

Systeemtoebehoren

Producten Type Art.nr. Aantal kl. VKE
Deksel, niet-geperforeerd A4 Deksel, niet-geperforeerd A4 DRLU 200 A4 6052993
3 m

Montagetoebehoren

Producten Type Art.nr. Aantal kl. VKE
Hoekverbinder A4 Hoekverbinder A4 GEV 36 A4 6016764
10 Stuks
