Grip 20, EcoLine

Art.nr. 2205406 | EAN 4012197498160

Art.nr. / Type	2205406 / 2031 20 ECO

Aantal leidingen NYM 3 x 1,5	20

Productbeschrijving

Productbeschrijving

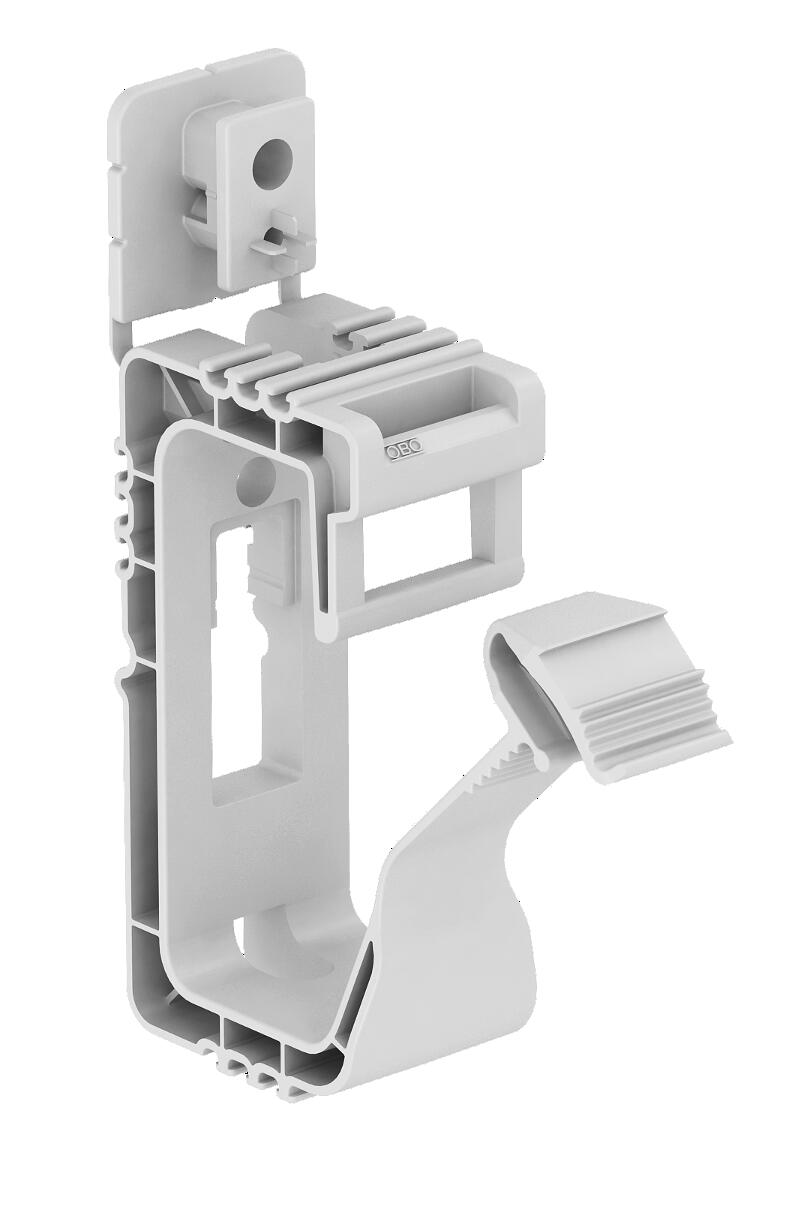

Collection clamp with pointed fastening element, for the mounting of up to 20 cables NYM 3 x 1.5 mm² on walls or ceilings. Fastening with impact anchor or push-fit anchor. Also suitable for the fastening with gas- and battery-operated firing tools of the brands Bosch, Fischer and Spit (nose diameter Ø 7 mm). Fastening hole: Ø 6 mm. Recommended fastening distance at full assignment 250–400 mm, depending on the resprective applicable national specifications/standards.

Technische gegevens

Technische gegevens

Aantal leidingen NYM 3 x 1,5	20
Breukbelasting	0,32 kN
CO2-voetafdruk (GWP) van wieg tot poort	0,0343 kg CO2e / 1 Stuk
Dimensie	20x NYM3x1,5
Functiebehoud	nee
Halogeenvrij	ja
