Kabelklem, voor 16 kabels

Art.nr. 2205033 | EAN 4012195211334

2205033 / 2033
16
Terug naar overzicht
Productbeschrijving
Productbeschrijving
Standaarduitvoering voor algemene toepassingen, zoals bijvoorbeeld verlaagde plafonds en tussenwandinstallaties.

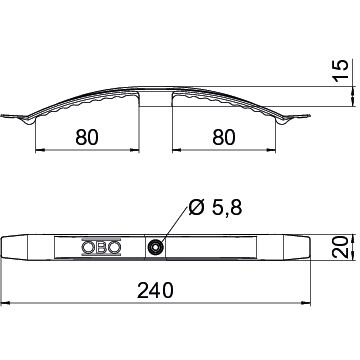

Klemhoogte 9 mm, met afstandsstuk 13 mm.
Bevestigingsgat 6 mm Ø.
2033 voor max. 16 leidingen NYM 3 x 1,5 mm²
  • Halogeenvrij; zonder chloor, fluor en broom
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
Technische gegevens

Technische gegevens

Aantal leidingen NYM 3 x 1,5 16
Breedte 20 mm
CO2-voetafdruk (GWP) van wieg tot poort 0,0874 kg CO₂e / 1 Stuk
Dimensie 2x8 NYM3x1,5
Functiebehoud nee
Halogeenvrij ja
Hoogte 29,4 mm
Kleur lichtgrijs; RAL 7035
Lengte 240 mm
Materiaal Polyamide
met plug nee
Uitvoering vlambestendig nee
Alle typen

Alle typen

Type Aantal leidingen NYM 3 x 1,5 Art.nr. Aantal kl. VKE
2033 16 2205033
25 Stuks
Toebehoren

Systeemtoebehoren

Producten Type Art.nr. Aantal kl. VKE
Afstandsstuk Afstandsstuk 2033 D 25x19 2205092
100 Stuks
Downloads

Download

2033 / 2205033
Download
