- Productbeschrijving
-

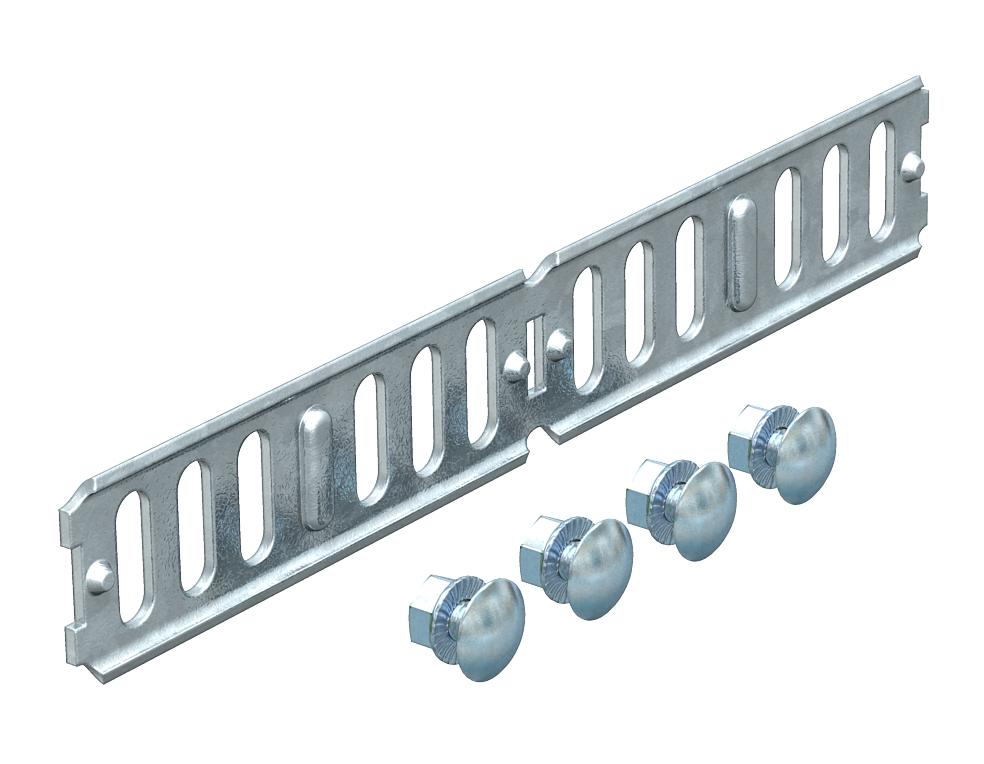

ProductbeschrijvingKoppel- en hoekverbinder voor kabelgoten en hulpstukken met een zijhoogte van 35 mm.
-
- Technische gegevens
-
Technische gegevens

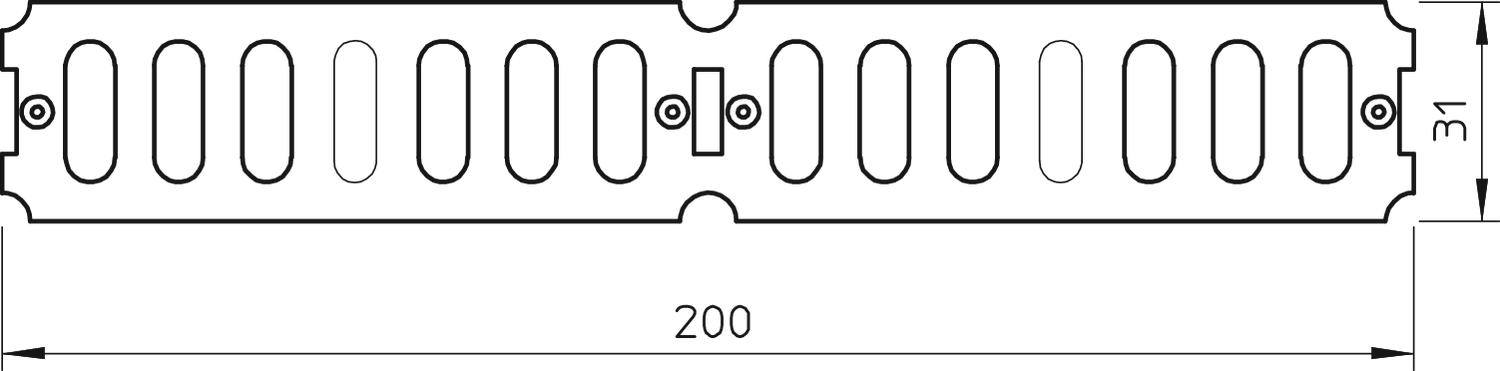

Afmetingen 200 x 31 Breedte 4 mm CO2-voetafdruk (GWP) van wieg tot poort 0,2979 kg CO2e / 1 Stuk Dimensie 35x200 Functiebehoud nee Geschikt voor draadgoot nee Geschikt voor kabeldraagsysteemhoogte 35 mm Geschikt voor kabelgoot ja Geschikt voor kabelladder nee Hoogte 1 in Hoogte 31 mm Kleur zink Lengte 200 mm Materiaal Staal Oppervlak bandverzinkt Plaatdikte 2 mm Roestvast staal, gebeitst nee Scharnierverbinder horizontaal nee Scharnierverbinder verticaal nee Uitvoering Hoekverbinder Verbindingstype Schroefverbinder - Alle typen
- Downloads
-
Specificatieblad RWVL 35 FS / 6067107 , 0.20MB , pdfRichtlijn KTS cable tray systems , 1.61MB , pdfCatalogus Cable support systems , 54.52MB , pdfEU Conformiteitsverklaring RWVL 35 FS / 6067107 , 0.13MB , pdfREACH Conformiteitsverklaring RWVL 35 FS / 6067107 , 0.12MB , pdfRoHS Conformiteitsverklaring RWVL 35 FS / 6067107 , 0.12MB , pdfMontagehandleiding Latchable Magic cable tray systems , 11.85MB , pdfMontagehandleiding Montagehandleiding voor schroefbare kabelgootsystemen , 9.41MB , pdfMontagehandleiding Screwable cable trays with fittings for screwing and clamping , 5.98MB , pdfMontagehandleiding General information on the mounting , 2.65MB , pdf
