- Productbeschrijving
-

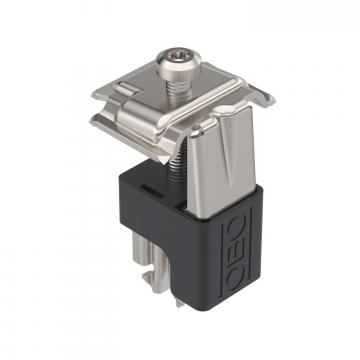

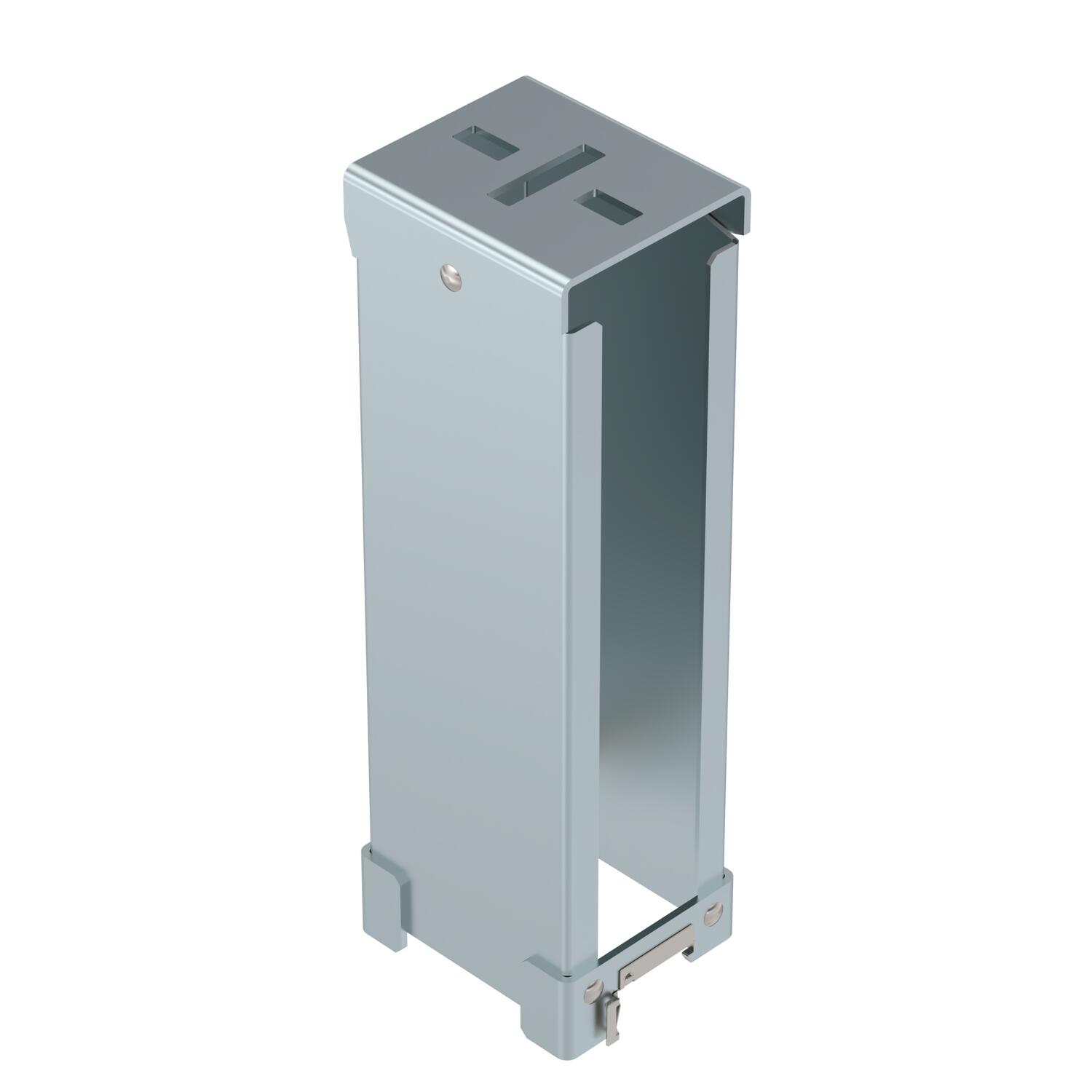

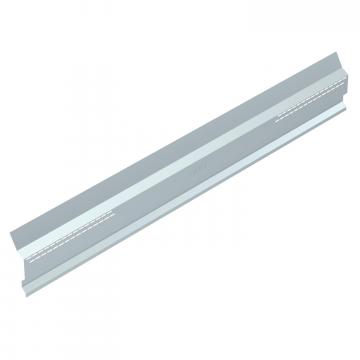

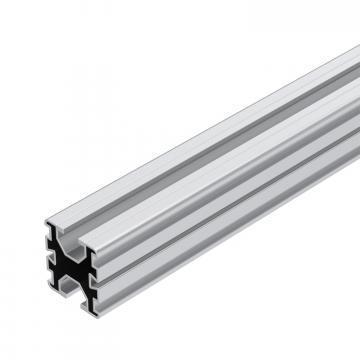

ProductbeschrijvingLong support to mount photovoltaic modules on flat roofs in combination with the TP 45/4700 support profile and KLU universal clamp. Slope angle 15°. Lockable fastening on support profile.
-
- Technische gegevens
-
Afmetingen
Breedte 87 mm CO2-voetafdruk (GWP) van wieg tot poort 6,8516 kg CO2e / 1 Stuk Dimensie 86x166x300 Hellinghoek max. 15 ° Hellinghoek min. 15 ° Hoogte 340 mm Kleur zink Lengte 164 mm Materiaal Staal Montagetype fotovoltaïsch montagesysteem Plat dak Oppervlak bandverzinkt zink/aluminium, Double Dip Uitvoering zonnesysteem-verbindings- en bevestigingselement overige Verstelbaar ja - Alle typen
- Downloads
-
Specificatieblad STL 15 DD / 5901655 , 0.18MB , pdfMontagehandleiding PV mounting systems Magic PV Flat Basic , 3.88MB , pdfMontagehandleiding PV mounting systems Magic PV Flat Pro , 6.08MB , pdf
