Montagerail MS4121, sleuf 22 mm, dubbel, FT, geperforeerd

Art.nr. 1122944 | EAN 4012195697794

41 mm
42 mm
2 mm
thermisch verzinkt
Terug naar overzicht
Productbeschrijving
Productbeschrijving

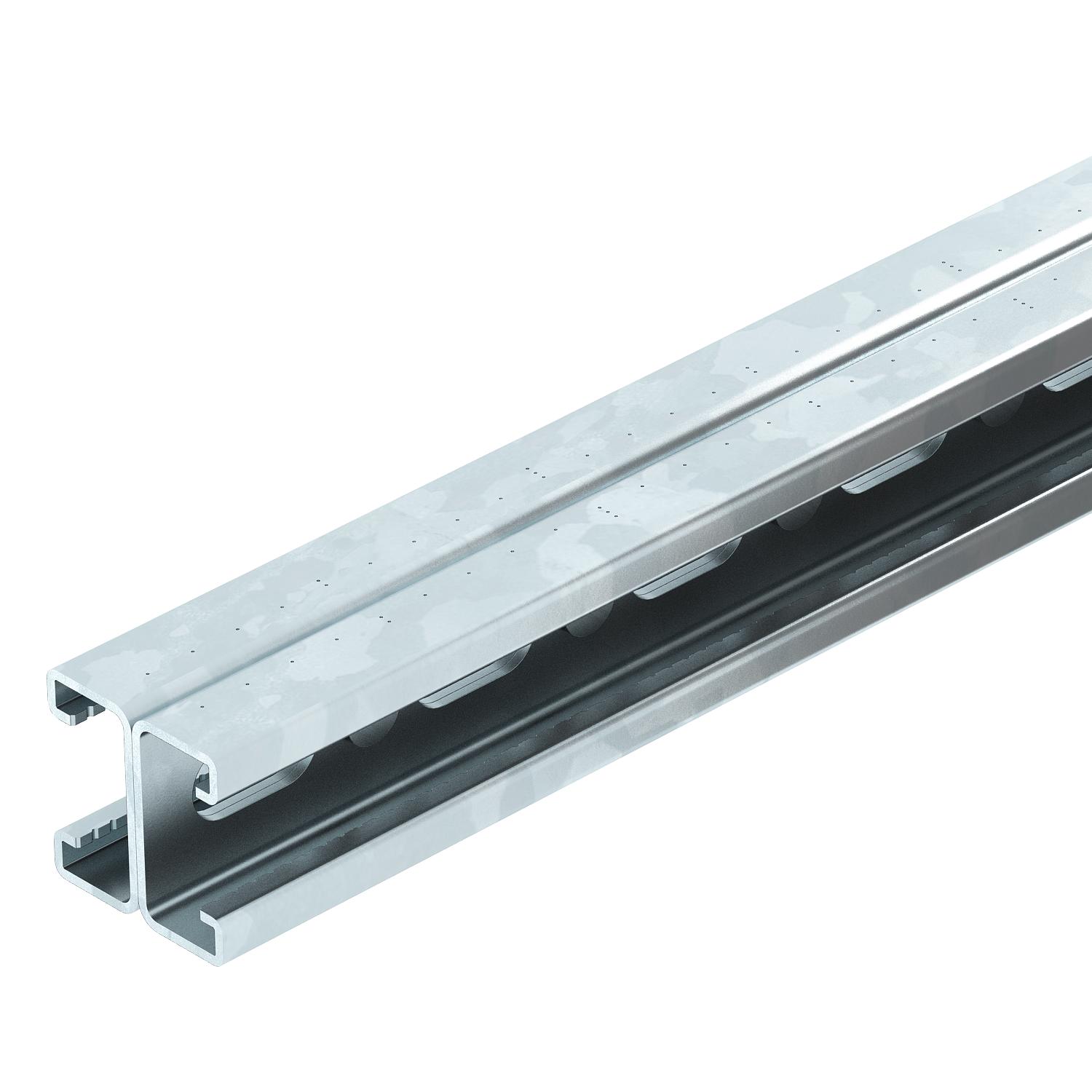

Montagerail met doorlopende bodemperforatie, zware uitvoering, met 22 mm sleufbreedte. In dubbele uitvoering, dat wil zeggen dat twee montagerails op de bodem met elkaar zijn verbonden (geklikt).
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • UKCA conformiteitsverklaring
  • Sleufbreedte 22 mm
  • Beugelklem voor C-profielrail met sleufwijdte 18-22 mm
Technische gegevens

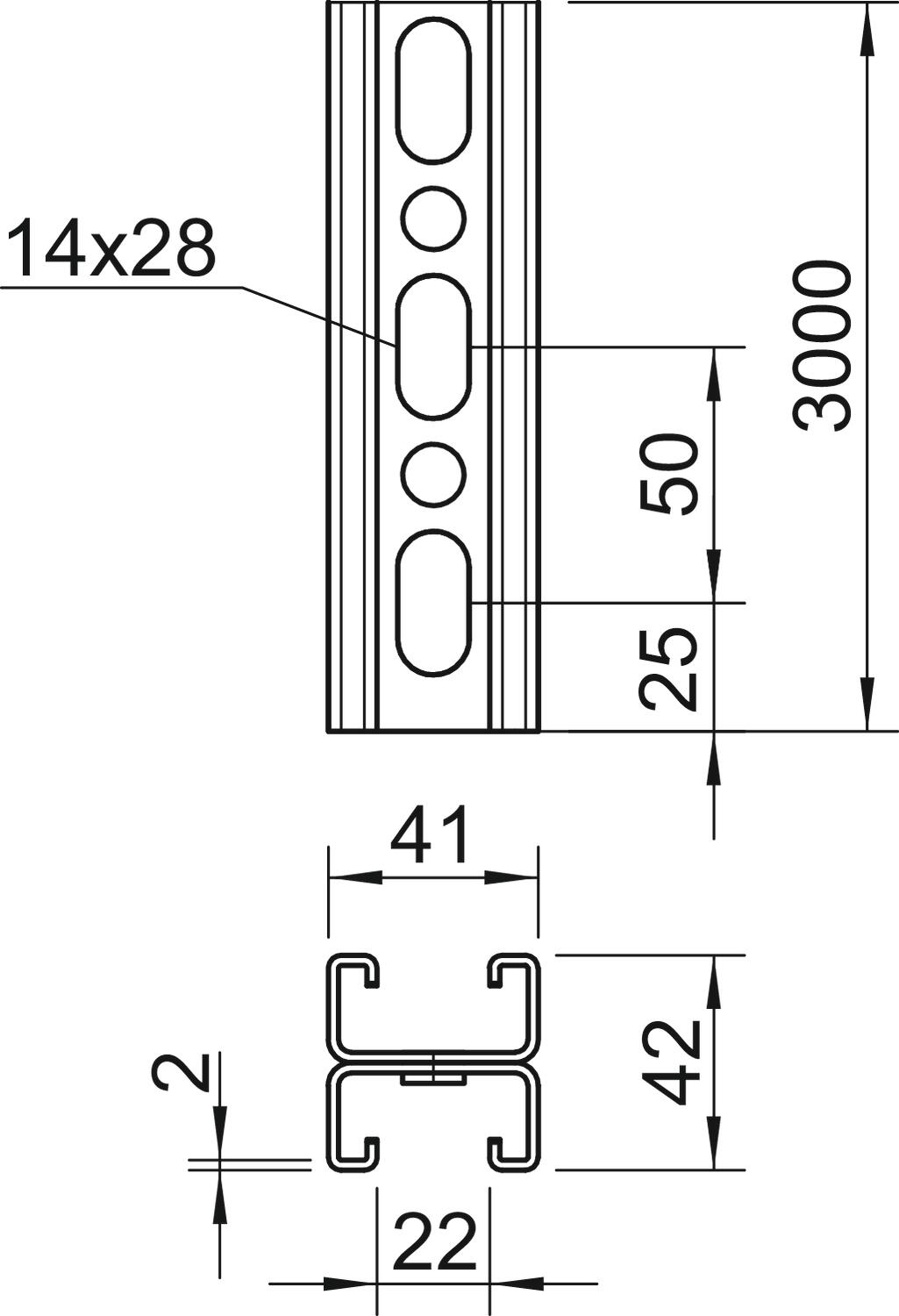

Afmetingen

Breedte 41 mm
CO2-voetafdruk (GWP) van wieg tot poort 6,5375 kg CO₂e / 1 Meter
Dimensie 3000x41x42
Functiebehoud nee
Gatgrootte 14x28 mm
Hoogte 42 mm
Lengte 3000 mm
Maat L 3000 mm
Materiaal Staal
Materiaaldikte 2 mm
Met vertanding ja
Oppervlak thermisch verzinkt
Profielvorm C-profiel
Sleufbreedte 22 mm
Soort perforatie Steun geperforeerd
Statische waarde A 3,3 cm²
Statische waarde ly 5,38 cm
Statische waarde lz 9,02 cm
Statische waarde Wy 1,28 cm²
Statische waarde Wz 0,25 cm²
Uitvoering Dubbel profiel
Alle typen

Alle typen

Type Lengte Breedte Hoogte Materiaaldikte Oppervlak Art.nr. Aantal kl. VKE
MS4142P3000FT 3000 mm 41 mm 42 mm 2 mm thermisch verzinkt 1122944
3 m
MS4142P6000FT 6000 mm 41 mm 42 mm 2 mm thermisch verzinkt 1122945
6 m
Toebehoren

Systeemtoebehoren

Producten Type Art.nr. Aantal kl. VKE
Glijmoer ZL Glijmoer ZL MS41SN M10 ZL 1147214
50 Stuks
Hamerkopbout ZL Hamerkopbout ZL MS41HB M10x30 ZL 1148322
50 Stuks
Beugelklem, 1-voudige kunststof drukwand, FT Beugelklem, 1-voudige kunststof drukwand, FT 2056U 22 FT 1175211
100 Stuks
