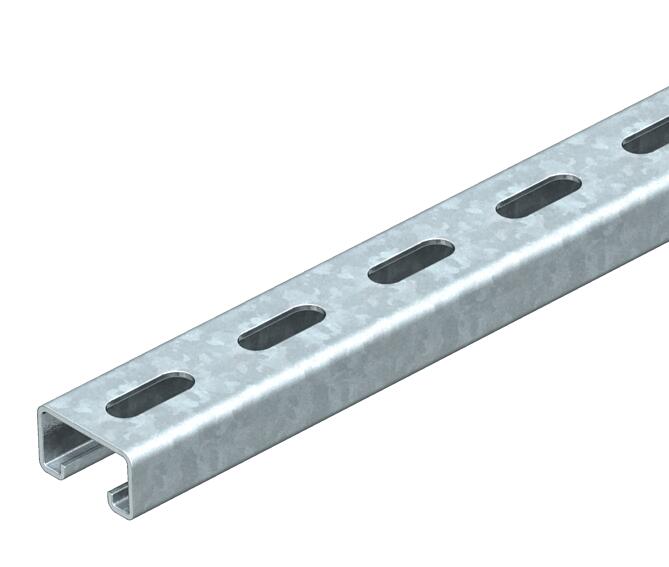

Montagerail MS4121, sleufbreedte 22 mm, FT, geperforeerd

Art.nr. 1122934 | EAN 4012195697664

41 mm
21 mm
2 mm
thermisch verzinkt
Terug naar overzicht
Productbeschrijving
Productbeschrijving
Zware C-profielrails voor individuele installatie van draagconstructies voor bijv. kabelgoten of als console voor schakelkasten. Ook toepasbaar voor kabelinstallatie in combinatie met beugelklemmen met U-voet.
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • Sleufbreedte 22 mm
  • Beugelklem voor C-profielrail met sleufwijdte 18-22 mm
  • Functiebehoudklasse E30
  • Functiebehoudklasse E90
Technische gegevens

Technische gegevens

Afbreekbaar nee

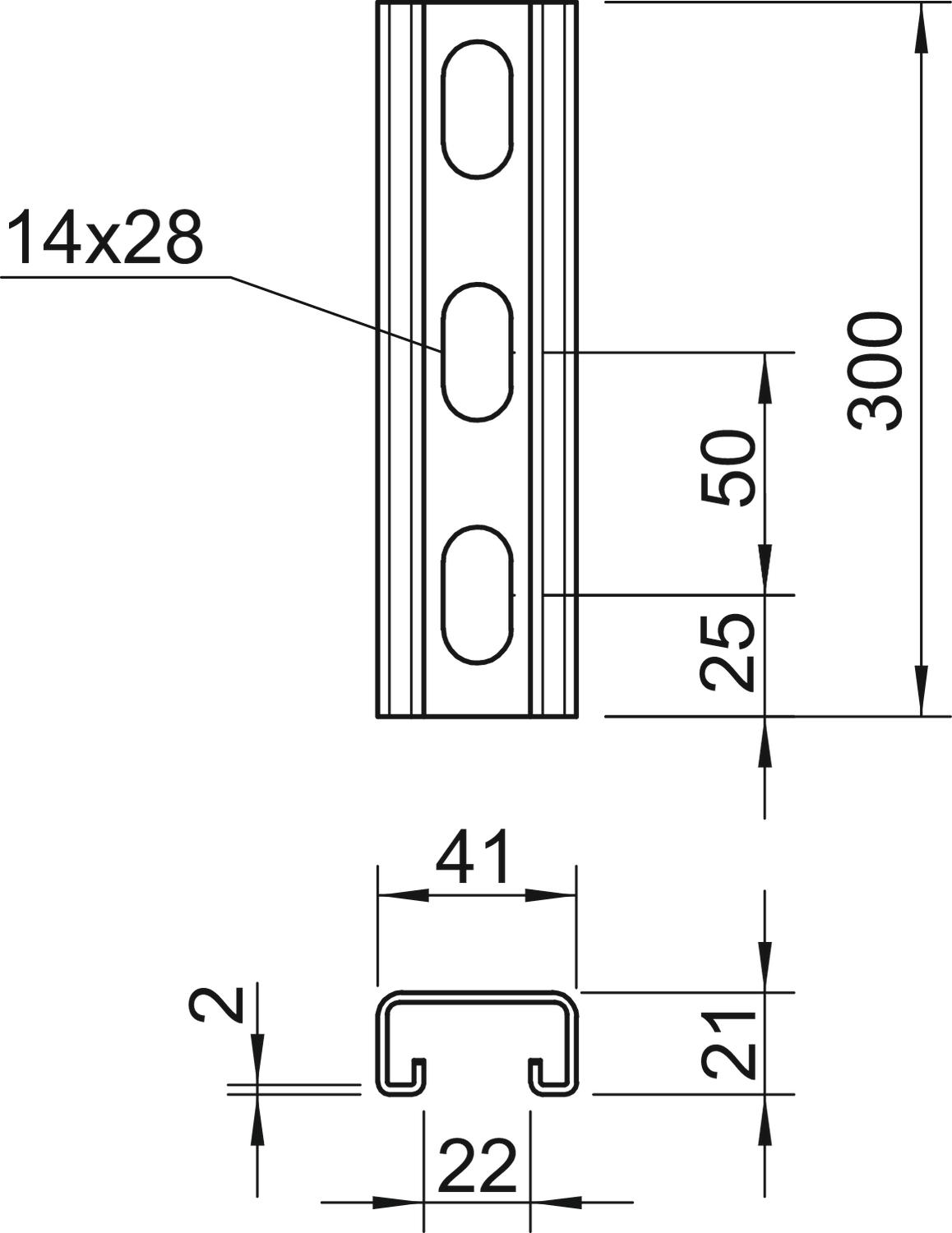

Boorgatafstand centrisch 50 mm
Breedte 41 mm
CO2-voetafdruk (GWP) van wieg tot poort 0,9545 kg CO₂e / 1 Stuk
Dimensie 300x41x21
Functiebehoud ja
Gatgrootte 14x28 mm
Hoogte 21 mm
Lengte 300 mm
Maat L 300 mm
Materiaal Staal
Materiaaldikte 2 mm
Met perforatie ja
Met vertanding ja
Oppervlak thermisch verzinkt
Profielvorm C-profiel
Sleufbreedte 22 mm
Soort perforatie Achterzijde geperforeerd
Statische waarde A 1,65 cm²
Statische waarde ly 0,95 cm
Statische waarde lz 4,51 cm
Statische waarde Wy 0,89 cm²
Statische waarde Wz 2,2 cm²
Uitvoering Enkel profiel
Alle typen

Alle typen

Type Lengte Breedte Hoogte Materiaaldikte Oppervlak Art.nr. Aantal kl. VKE
MS4121P0300FT 300 mm 41 mm 21 mm 2 mm thermisch verzinkt 1122934
1 Stuks
MS4121P0400FT 400 mm 41 mm 21 mm 2 mm thermisch verzinkt 1122935
1 Stuks
MS4121P0700FT 700 mm 41 mm 21 mm 2 mm thermisch verzinkt 1122938
1 Stuks
MS4121P0800FT 800 mm 41 mm 21 mm 2 mm thermisch verzinkt 1122939
1 Stuks
MS4121P0900FT 900 mm 41 mm 21 mm 2 mm thermisch verzinkt 1122940
1 Stuks
Toebehoren

Systeemtoebehoren

Producten Type Art.nr. Aantal kl. VKE
Glijmoer ZL Glijmoer ZL MS41SN M10 ZL 1147214
50 Stuks
Hamerkopbout ZL Hamerkopbout ZL MS41HB M10x30 ZL 1148322
50 Stuks
Beugelklem, 1-voudige kunststof drukwand, FT Beugelklem, 1-voudige kunststof drukwand, FT 2056U 22 FT 1175211
100 Stuks
