- Productbeschrijving
-

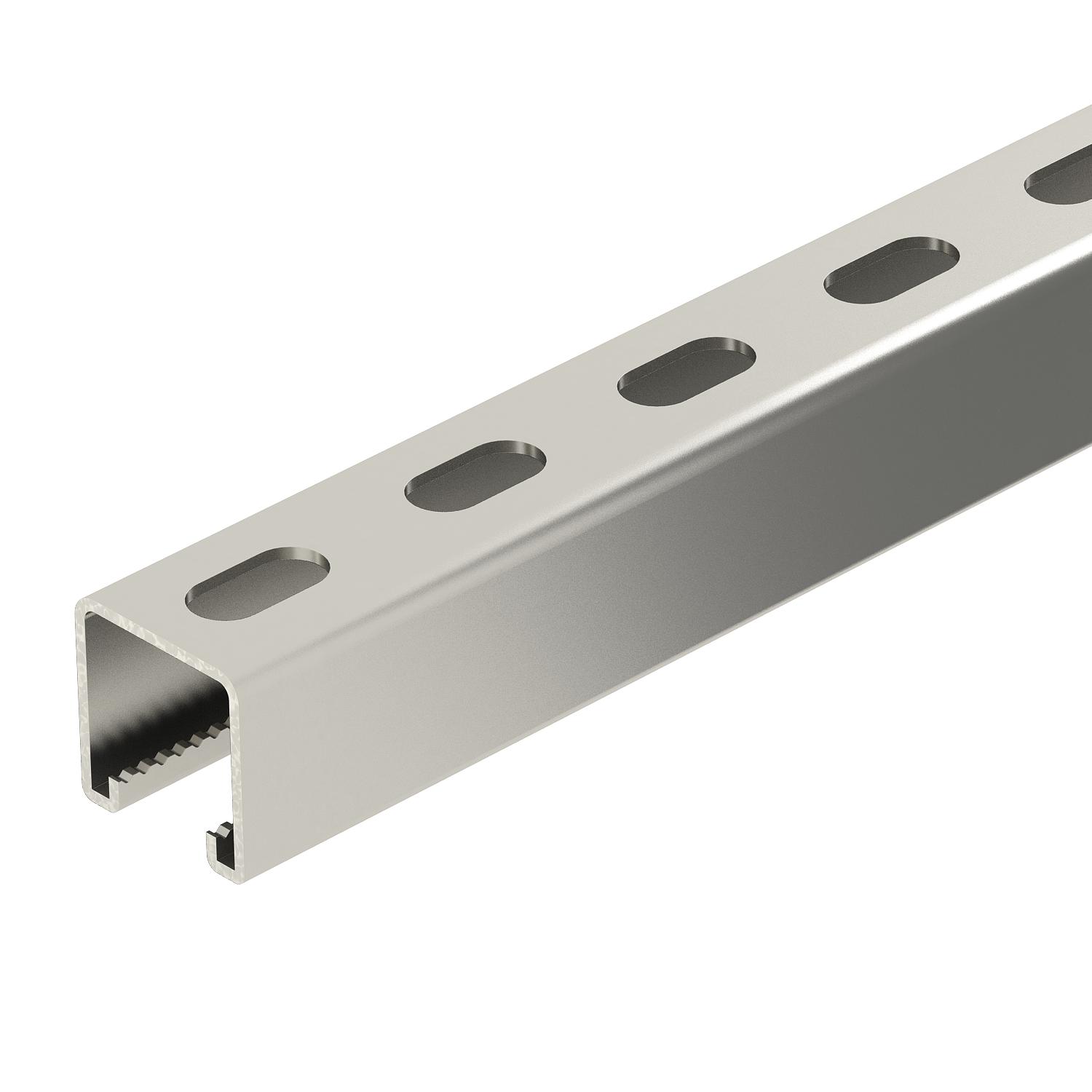

ProductbeschrijvingZware C-profielrails voor individuele installatie van draagconstructies voor bijv. kabelgoten of als console voor schakelkasten. Ook toepasbaar voor kabelinstallatie in combinatie met beugelklemmen met U-voet.
-
- Technische gegevens
-
Technische gegevens

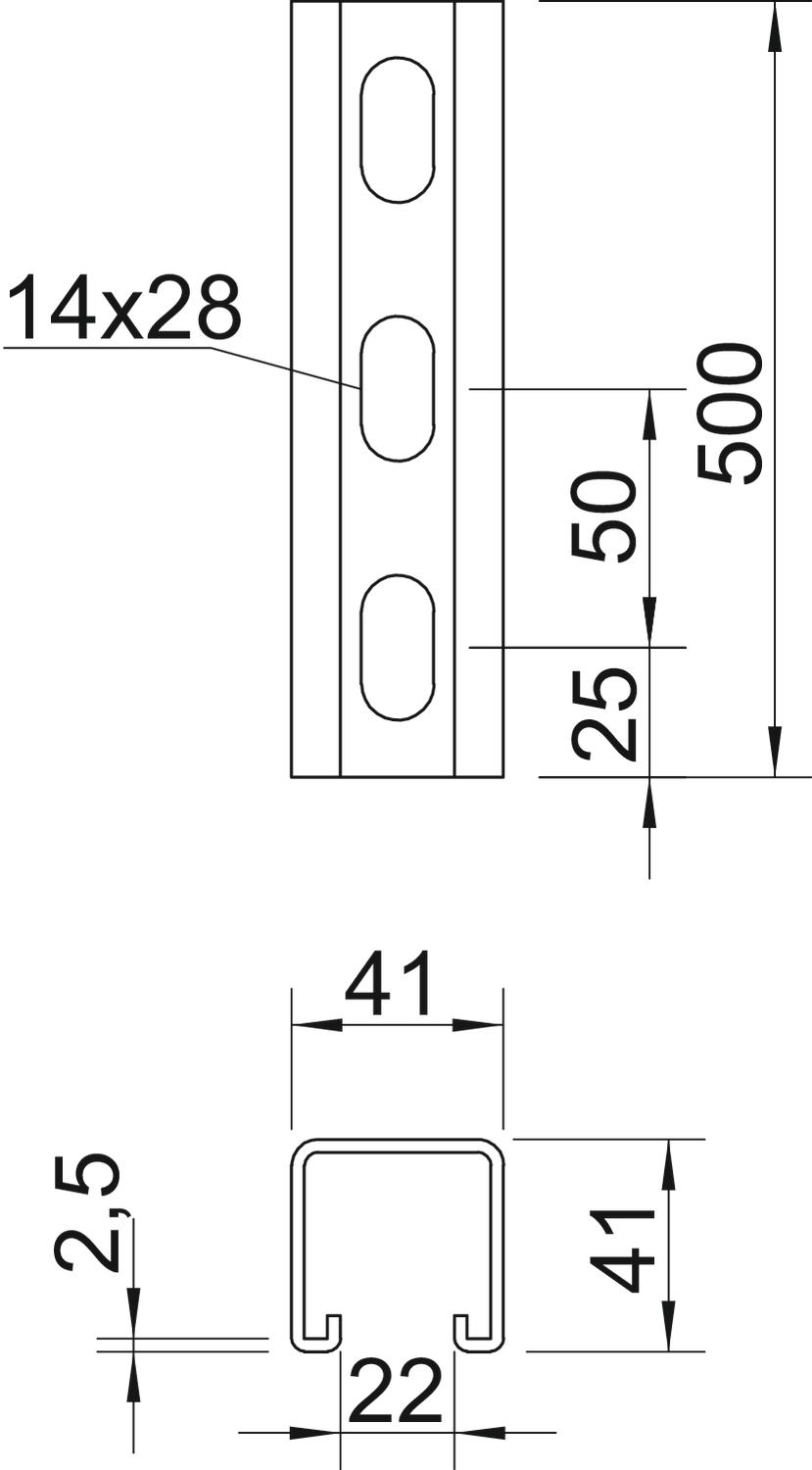

Afbreekbaar nee Boorgatafstand centrisch 50 mm Breedte 41 mm CO2-voetafdruk (GWP) van wieg tot poort 7,1091 kg CO₂e / 1 Stuk Dimensie 500x41x41 Functiebehoud nee Gatgrootte 14x28 mm Hoogte 41 mm Lengte 500 mm Maat L 500 mm Materiaal Roestvast staal 1.4571 Materiaaldikte 2,5 mm Met vertanding ja Profielvorm C-profiel Sleufbreedte 22 mm Soort perforatie Achterzijde geperforeerd Statische waarde A 2,97 cm² Statische waarde ly 6,05 cm Statische waarde lz 9,01 cm Statische waarde Wy 2,91 cm² Statische waarde Wz 4,4 cm² Uitvoering Enkel profiel - Alle typen
- Downloads
-
Specificatieblad MS4141P0500A4 / 1123037 , 0.15MB , pdfBrochure Railsystemen , 2.10MB , pdfEU Conformiteitsverklaring MS4141P0500A4 / 1123037 , 0.13MB , pdfEU Conformiteitsverklaring EU Conformiteitsverklaring ,UK Conformiteitsverklaring MS4141P0500A4 / 1123037 , 0.09MB , pdf
