Montageset voor cassettes voor zware belastingen

Art.nr. 7407651 | EAN 4012196552962

7407651 / MS3 3UT3
207 mm
Terug naar overzicht
Productbeschrijving
Productbeschrijving

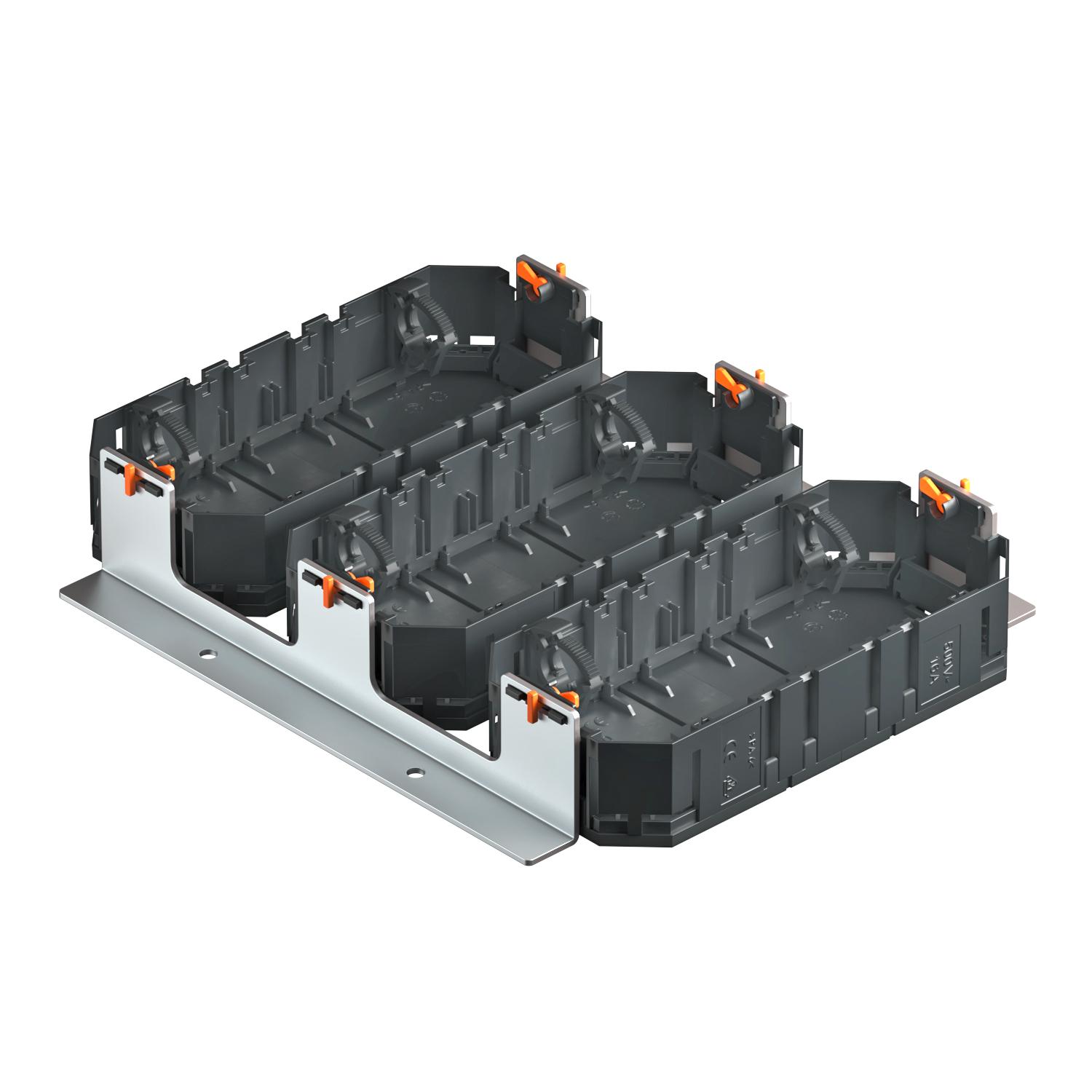

Montageset met drie universele dragers van het type UT3 voor inbouw in cassettes voor zware belastingen
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Duitsland
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
Technische gegevens

Technische gegevens

Aantal inbouwbare apparaten 9
Aantal invoeren 4
Aantal trekontlastingen 6
Breedte 250 mm
CO2-voetafdruk (GWP) van wieg tot poort 2,6055 kg CO2e / 1 Stuk

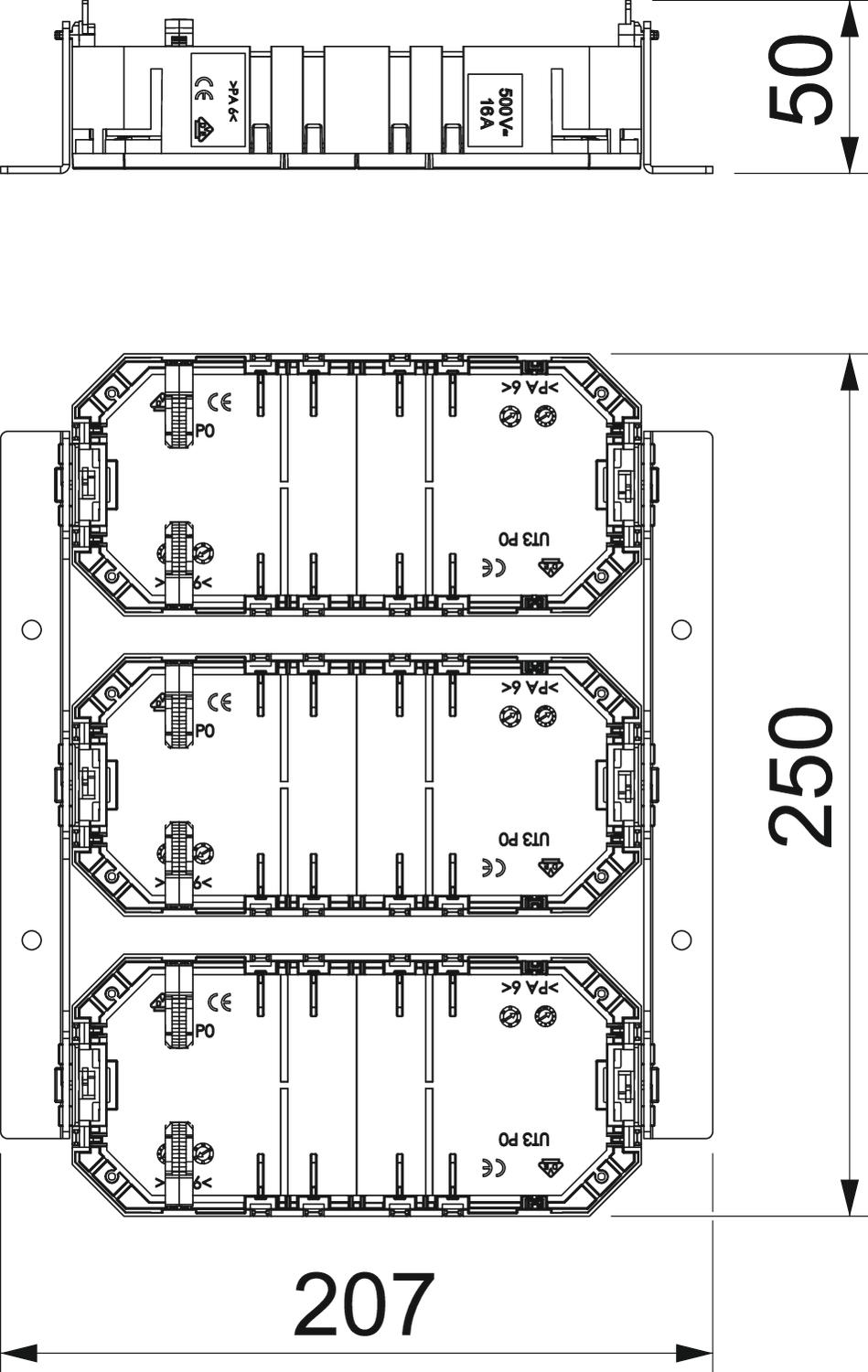

Dimensie 250x207x44
Hoogte 50 mm
Lengte 207 mm
Materiaal Staal
Oppervlak bandverzinkt
Uitvoering Dragervorm
Alle typen

Alle typen

Type Lengte Art.nr. Aantal kl. VKE
MS3 3UT3 207 mm 7407651
1 Stuks
