Nail tie with thread A4

Art.nr. 3499024 | EAN 4012197507374

3499024 / FNAII 6x30M6/5A4
M6
Productbeschrijving
Productbeschrijving

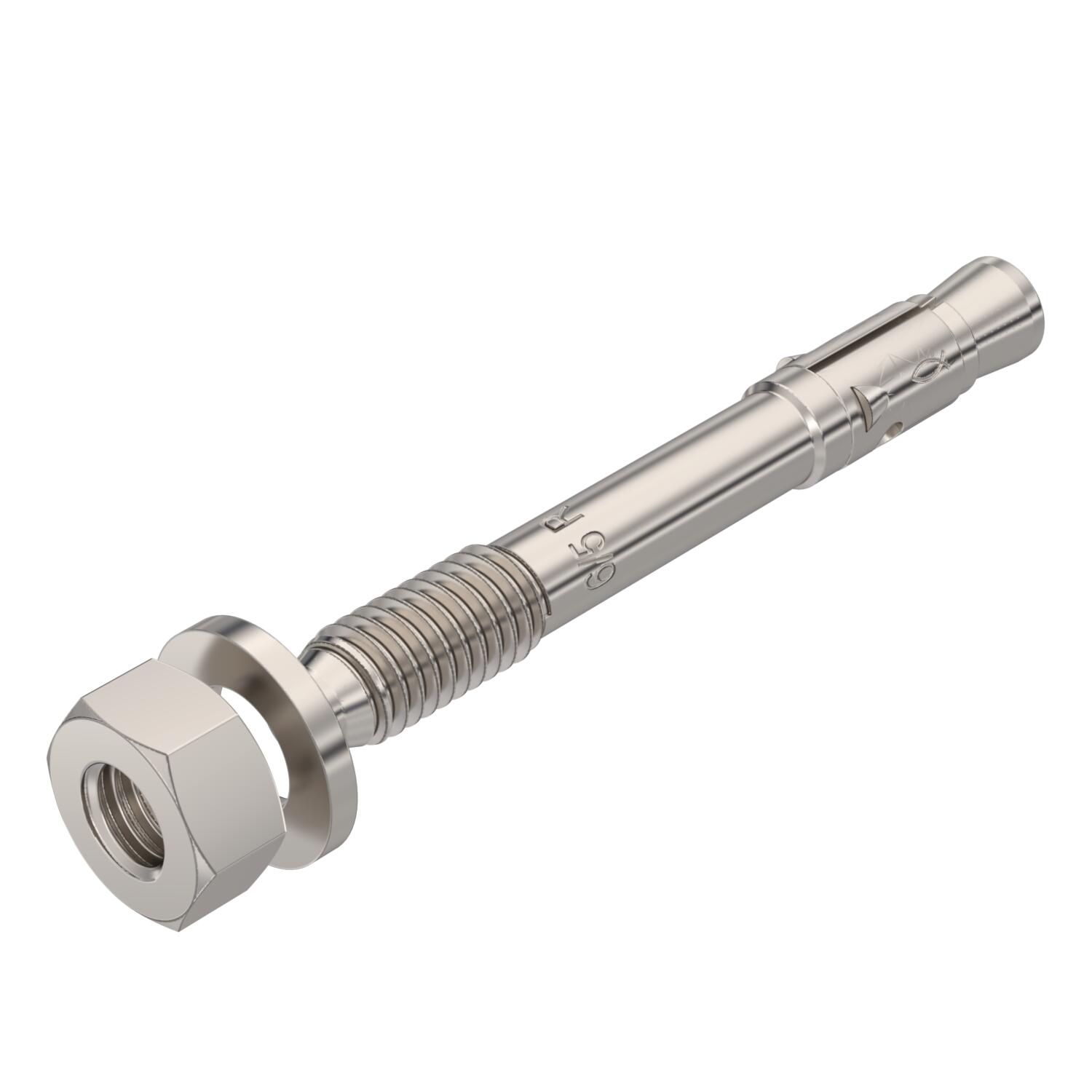

Nail tie with thread for the anchoring of, for example, fire protective products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer. When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
Technische gegevens

Technische gegevens

Bevestigingsinrichting Overige
Boorgatdiepte 45 mm
Boringsdiameter min. 6 mm

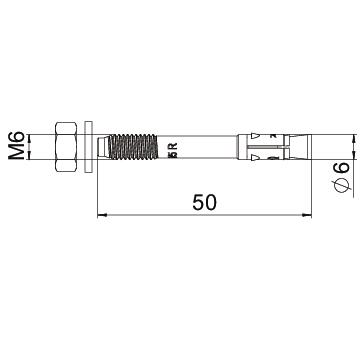

Dimensie 6x50
Klemkracht 10 mm
Kleur roestvrij staal
Lengte 55 mm
Maat L 55 mm
Materiaal Roestvast staal
Schroefdraad M6
Schroefdraad metrisch 6
Toelatingen aanwezig ja
Uitvoering Inslag
Zelfborend nee
Alle typen

Alle typen

Type Schroefdraad Art.nr. Aantal kl. VKE
FNAII 6x30M6/5A4 M6 3499024
50 Stuks
