Reductie, metrische schroefdraad

Art.nr. 2030640 | EAN 4012195402558

Art.nr. / Type
Terug naar overzicht
Productbeschrijving
Productbeschrijving

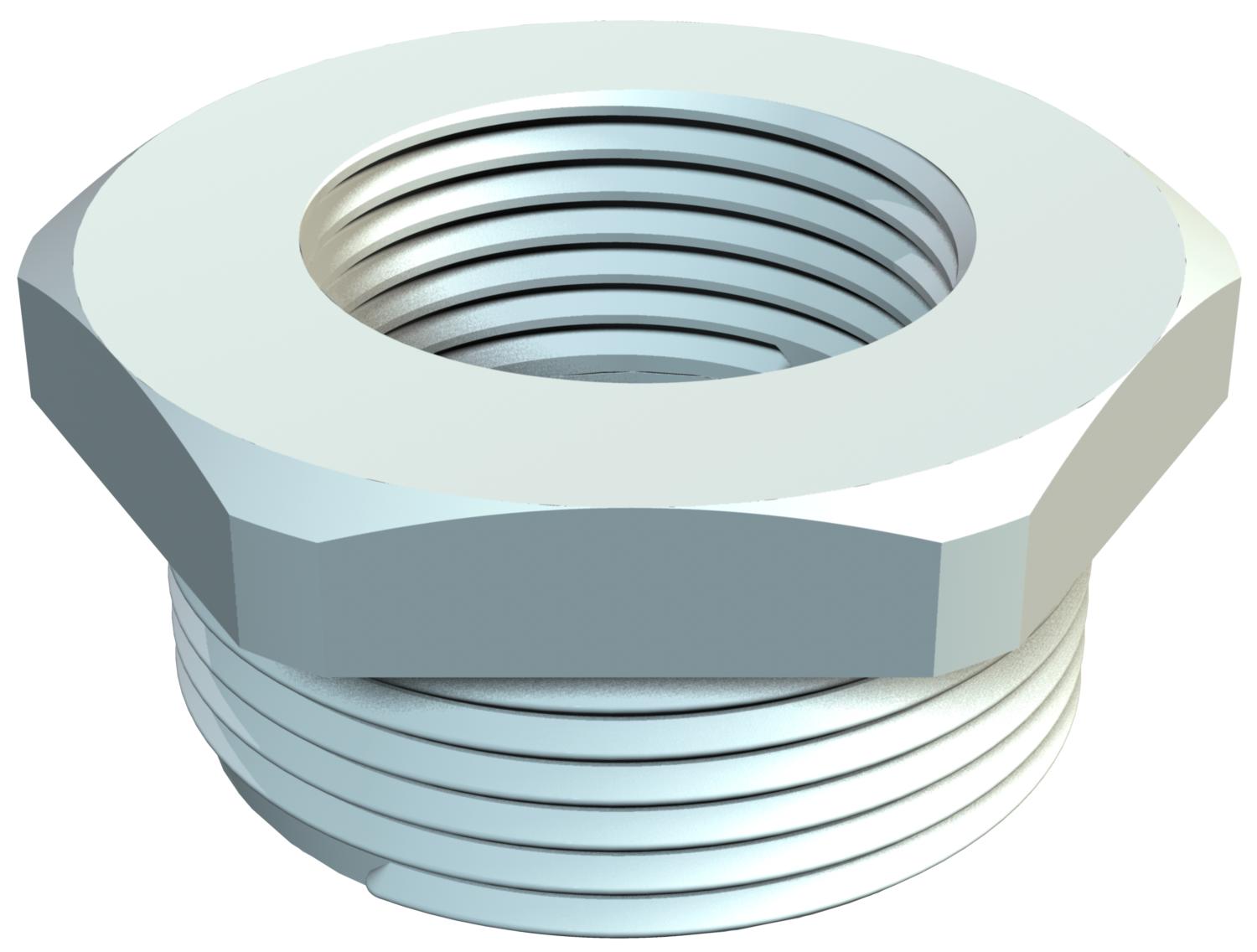

Verloop met metrisch binnen- en buitendraad voor de montage van kunststof kabelwartels op behuizingen. Beschermingsklassen IP54 zonder extra aansluitafdichting. Beschermingsklasse tot IP68 mogelijk met extra aansluitafdichting, bijvoorbeeld O-ring of vlakke afdichtring.
  • Halogeenvrij; zonder chloor, fluor en broom
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • Schroefdraad metrisch
  • CO₂ footprint (PCF)
Technische gegevens

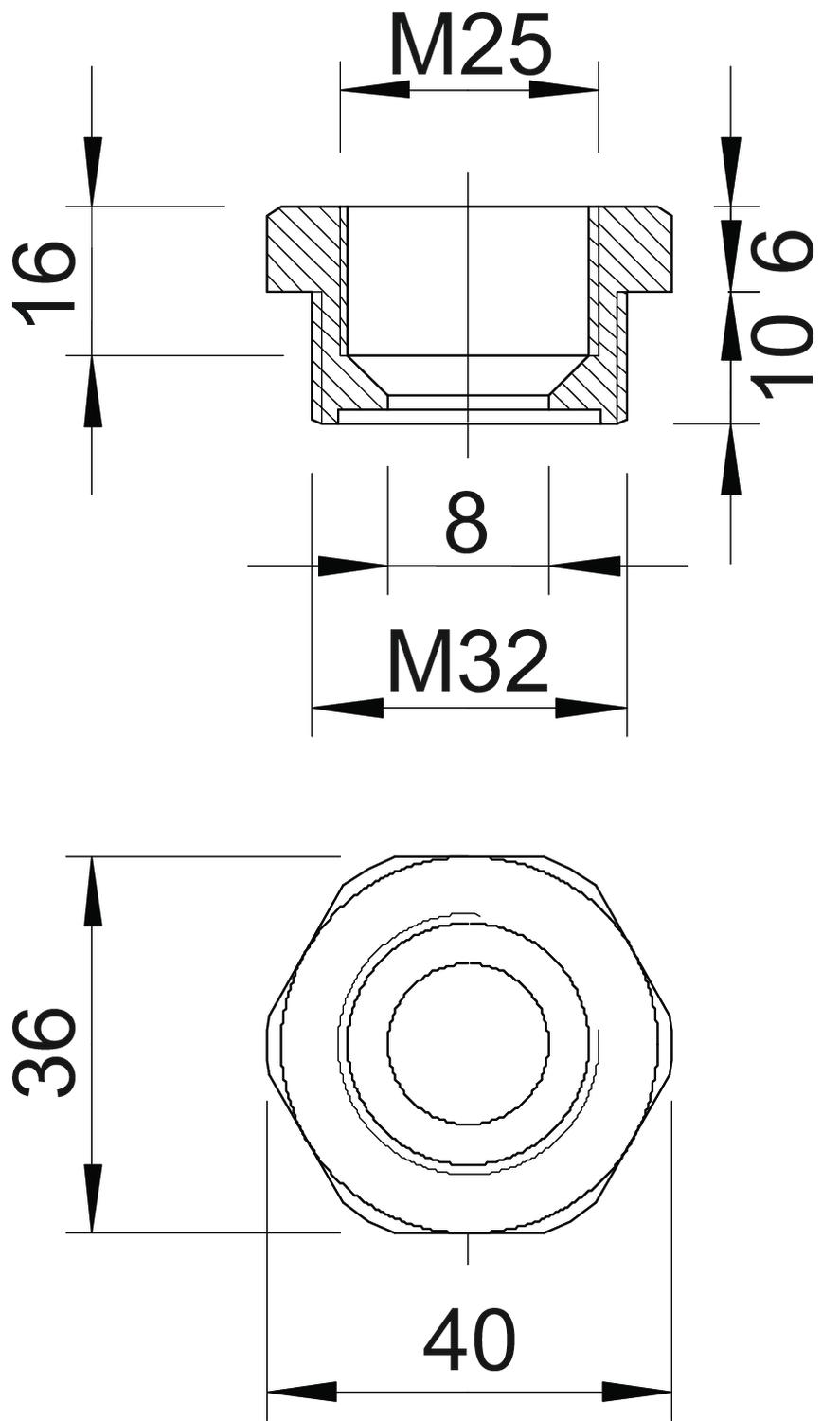

Afmetingen

Afmeting e 40 mm
Afmeting schroefdraad metrisch binnen 25
Afmeting schroefdraad metrisch buiten 32
CO2-voetafdruk (GWP) van wieg tot poort 0,034 kg CO₂e / 1 Stuk
Dimensie M32-M25
Explosiebeveiligd nee
Halogeenvrij ja
Kleur lichtgrijs; RAL 7035
Lengte schroefdraad 10 mm
Maat L 16 mm
Maat L1 10 mm
Maat L2 6 mm
Maat L3 16 mm
Materiaal Polyamide
Sleutelwijdte 36
Soort schroefdraad binnendraad Metrisch
Soort schroefdraad buitendraad Metrisch
vernikkeld nee
Alle typen

Alle typen

Type Afmeting schroefdraad metrisch buiten Afmeting schroefdraad metrisch binnen Afmeting schroefdraad PG buiten Afmeting schroefdraad PG binnen Sleutelwijdte Art.nr. Aantal kl. VKE
107 R M32-25 PA 32 25 36 2030640
50 Stuks
