- Productbeschrijving
-

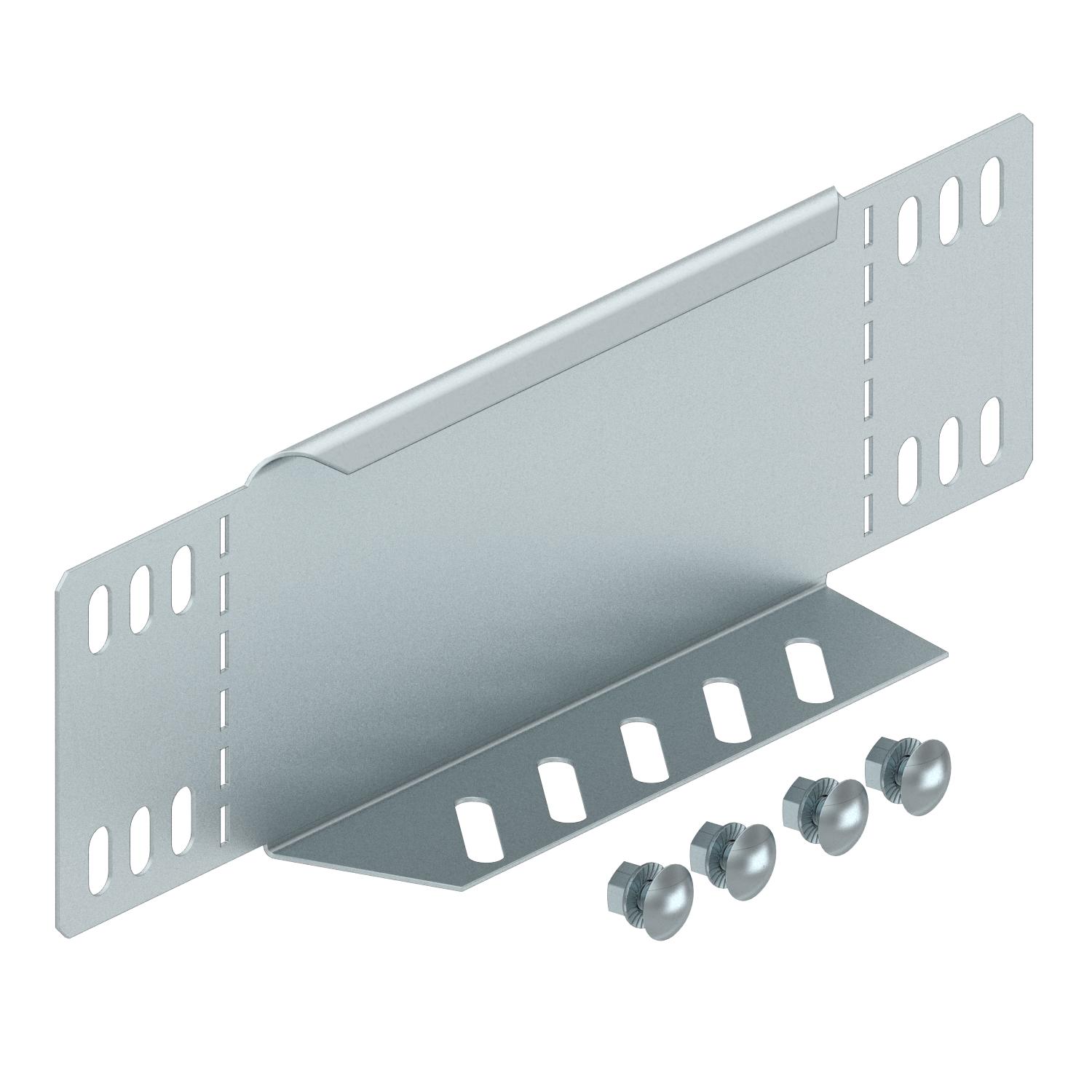

ProductbeschrijvingTe gebruiken als verloopstuk of als afsluitplaat voor kabelgoten met een zijhoogte van 85 mm.
-
- Technische gegevens
-

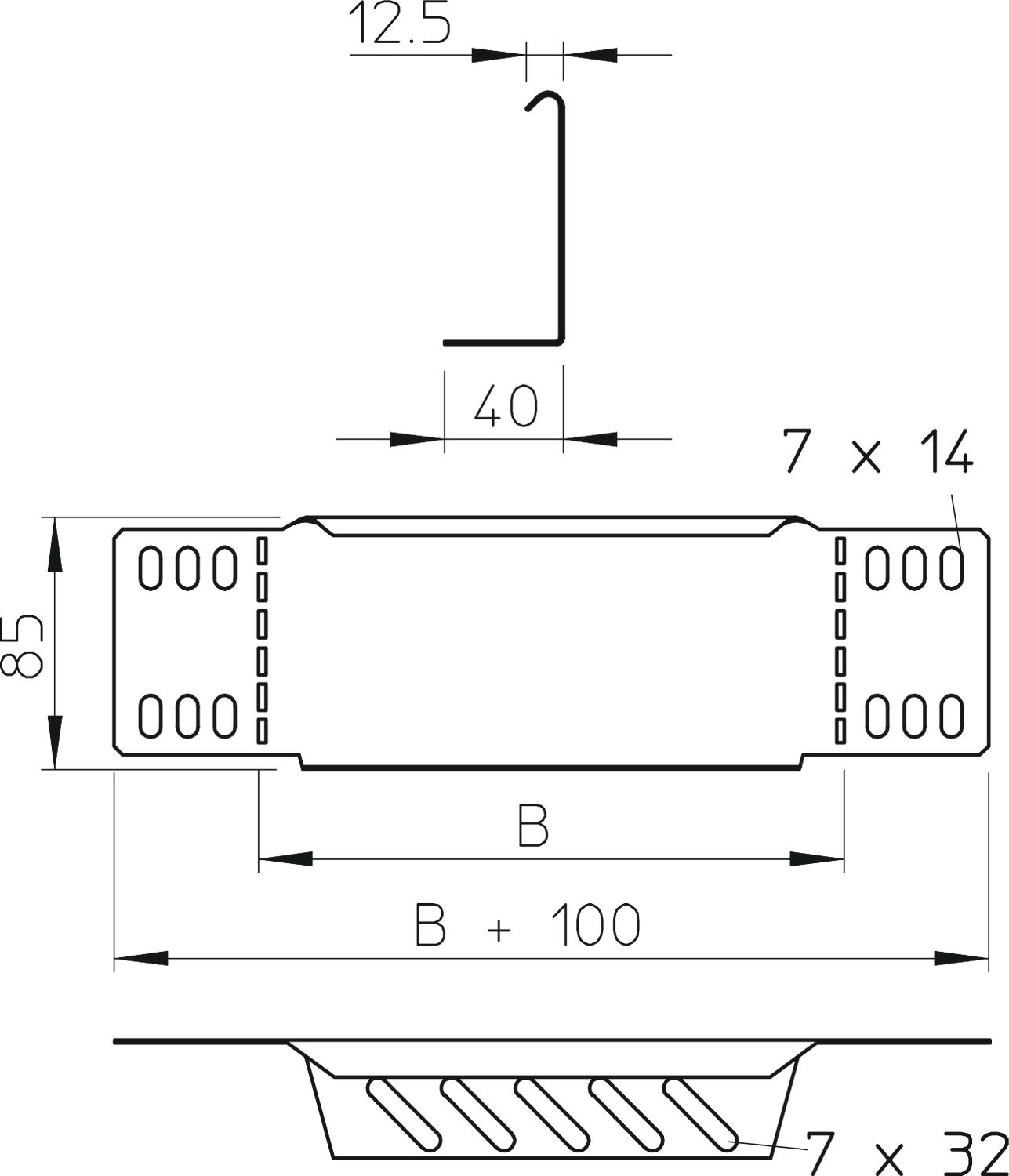

Afmetingen
Breedte 100 mm Breedte 4 in CO2-voetafdruk (GWP) van wieg tot poort 0,4824 kg CO2e / 1 Stuk Dimensie 85x100 Functiebehoud nee Hoogte 3 in Hoogte 85 mm Kleur zink Maat B 100 mm Materiaal Staal Oppervlak bandverzinkt Plaatdikte 1 mm Roestvast staal, gebeitst nee - Alle typen
- Downloads
-
Specificatieblad RWEB 810 FS / 7110103 , 0.21MB , pdfRichtlijn KTS cable tray systems , 1.61MB , pdfCatalogus Cable support systems , 54.52MB , pdfEU Conformiteitsverklaring RWEB 810 FS / 7110103 , 0.13MB , pdfUK Conformiteitsverklaring RWEB 810 FS / 7110103 , 0.09MB , pdfREACH Conformiteitsverklaring RWEB 810 FS / 7110103 , 0.12MB , pdfRoHS Conformiteitsverklaring RWEB 810 FS / 7110103 , 0.12MB , pdfMontagehandleiding Latchable Magic cable tray systems , 11.85MB , pdfMontagehandleiding General information on the mounting , 2.65MB , pdfMontagehandleiding Screwable cable trays with fittings for screwing and clamping , 5.98MB , pdfMontagehandleiding Montagehandleiding voor schroefbare kabelgootsystemen , 9.41MB , pdf
