Wartelsysteem, metrische schroefdraad, lichtgrijs

Art.nr. 2022876 | EAN 4012195533955

nee
lichtgrijs; RAL 7035
Terug naar overzicht
Productbeschrijving
Productbeschrijving
Wartelsysteem met metrische schroefdraad in dopmoerconstructie, voor kabelaansluitdozen, behuizing en verdeelkasten voor particuliere en industriële toepassingen. Met trekontlasting en geïntegreerde afdichtingslip, getest conform NEN-EN-IEC 62444. Beschermingsklasse IP68. Te gebruiken van -20 °C tot +65 °C.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Det Norske Veritas
  • Vlambestendig 650° C
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • UKCA conformiteitsverklaring
  • Beschermingsgraad IP 68
  • Schroefdraad metrisch
Technische gegevens

Technische gegevens

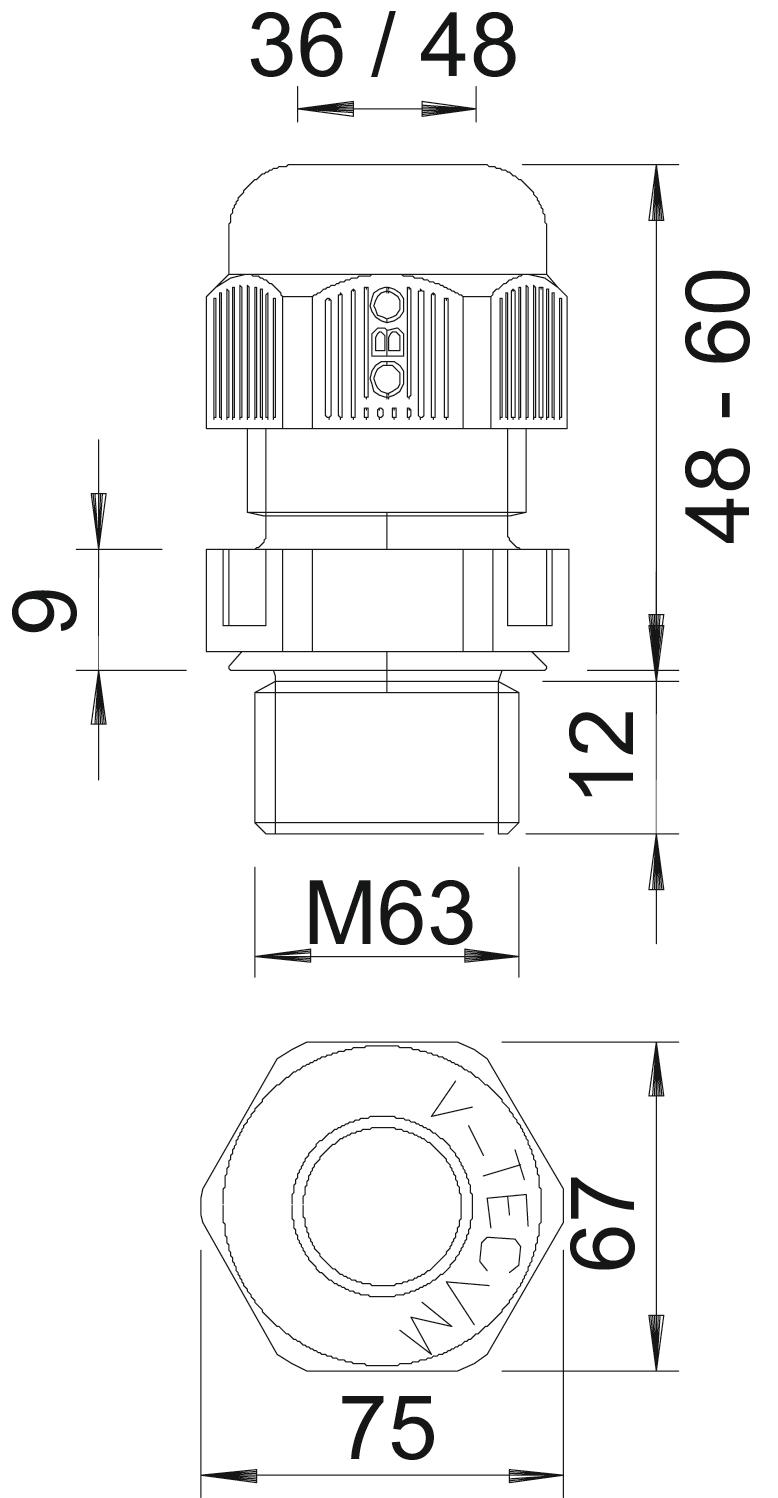

Afdichtbereik D max. 48 mm
Afdichtbereik D min. 36 mm
Afmeting e 75 mm
Afmeting L max. 60 mm
Afmeting L min. 48 mm
Beschermingsgraad IP68
CO2-voetafdruk (GWP) van wieg tot poort 0,4147 kg CO₂e / 1 Stuk
Deelbare wartel nee
Dimensie M63
Doorbuigbescherming nee
Explosiebeveiligd nee
Glasvezelversterkt nee
Halogeenvrij ja
Instabiel draaimoment 15 Nm
Kleur lichtgrijs; RAL 7035
Lengte schroefdraad 12 mm
Maat L1 12 mm
Maat L2 9 mm
Materiaal Polyamide
Meervoudig dichtingsinzetstuk nee
Met borgmoer nee
Nominale schroefdraadmaat 63
Schroefdraad M63 x 1,5
Slagvast nee
Sleutelwijdte 67
Soort afdichting Dichtring
Soort schroefdraad Metrisch
Spoed 1,5 mm
Temperatuurbereik max. 65 °C
Temperatuurbereik min. -20 °C
Trekontlastingsmogelijkheid ja
Uitvoering Recht
Vlambestendig volgens VDE 0471/DIN 695 deel 2-1, testtemperatuur 650°C
Voor Ex-zone zonder
voor Ex-zone gas zonder
voor Ex-zone stof zonder
Wartel voor platte kabel nee
Zeskant hoekmaat 75 mm
Alle typen

Alle typen

Type Schroefdraad Meervoudig dichtingsinzetstuk Kleur Art.nr. Aantal kl. VKE
V-TEC VM12 LGR M12 x 1,5 nee lichtgrijs; RAL 7035 2022862
50 Stuks
V-TEC VM16 LGR M16 x 1,5 nee lichtgrijs; RAL 7035 2022864
50 Stuks
V-TEC VM20 LGR M20 x 1,5 nee lichtgrijs; RAL 7035 2022866
50 Stuks
V-TEC VM25 LGR M25 x 1,5 nee lichtgrijs; RAL 7035 2022868
25 Stuks
V-TEC VM32 LGR M32 x 1,5 nee lichtgrijs; RAL 7035 2022870
20 Stuks
V-TEC VM40 LGR M40 x 1,5 nee lichtgrijs; RAL 7035 2022872
10 Stuks
V-TEC VM50 LGR M50 x 1,5 nee lichtgrijs; RAL 7035 2022874
5 Stuks
V-TEC VM63 LGR M63 x 1,5 nee lichtgrijs; RAL 7035 2022876
5 Stuks
Toebehoren

Montagetoebehoren

Producten Type Art.nr. Aantal kl. VKE

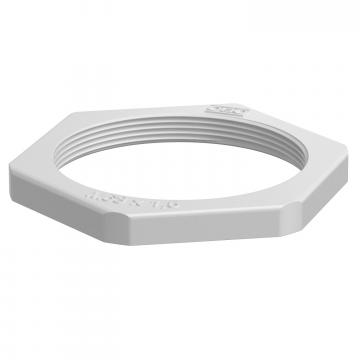

Tegenmoer, metrische schroefdraad, lichtgrijs Tegenmoer, metrische schroefdraad, lichtgrijs 116 M63 LGR PA 2048973
25 Stuks
