- Productbeschrijving
-

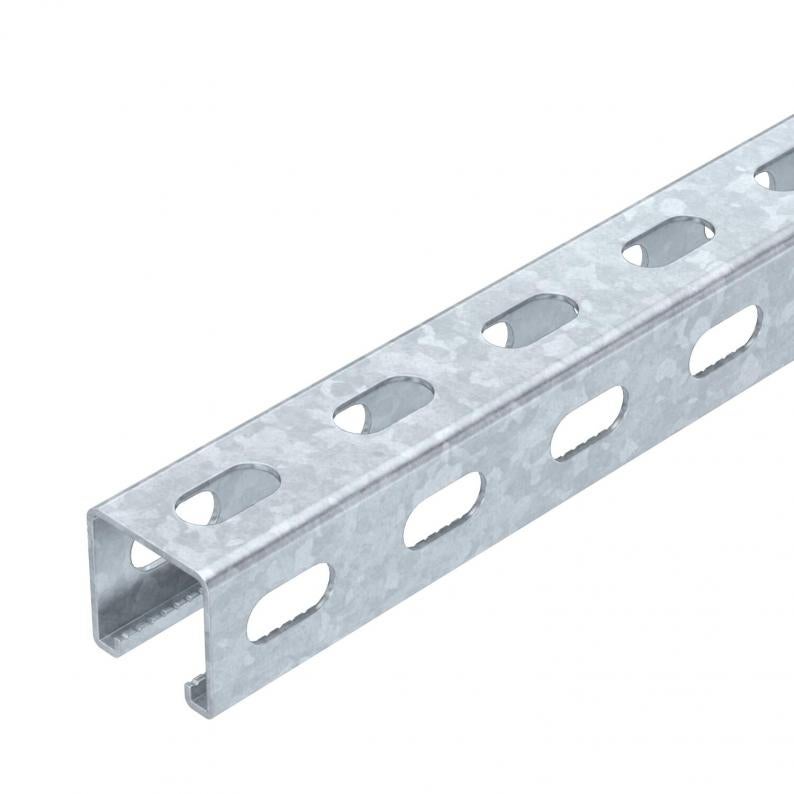

ProductbeschrijvingZware C-profielrails voor individuele installatie van draagconstructies voor bijv. kabelgoten of als console voor schakelkasten. Ook toepasbaar voor kabelinstallatie in combinatie met beugelklemmen met U-voet.
-
- Technische gegevens
-
Technische gegevens

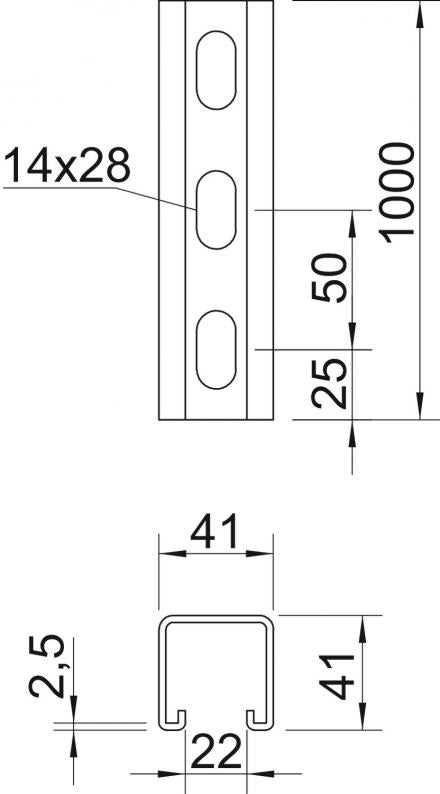

Afbreekbaar nee Boorgatafstand centrisch 50 mm Breedte 41 mm CO2-voetafdruk (GWP) van wieg tot poort 4,355 kg CO₂e / 1 Meter Dimensie 1000x41x41 Functiebehoud ja Gatgrootte 14x28 mm Hoogte 41 mm Lengte 1000 mm Maat L 1000 mm Materiaal Staal Materiaaldikte 2 mm Met perforatie ja Met vertanding ja Oppervlak thermisch verzinkt Profielvorm C-profiel Sleufbreedte 22 mm Soort perforatie 3 zijden geperforeerd Statische waarde A 2,01 cm² Statische waarde ly 5,13 cm Statische waarde lz 5,88 cm Statische waarde Wy 2,49 cm² Statische waarde Wz 2,88 cm² Uitvoering Enkel profiel - Alle typen
- Downloads
-
Specificatieblad MSL4141PP1000FT / 1123001 , 0.17MB , pdfBrochure Railsystemen , 2.10MB , pdfEU Conformiteitsverklaring MSL4141PP1000FT / 1123001 , 0.13MB , pdfUK Conformiteitsverklaring MSL4141PP1000FT / 1123001 , 0.09MB , pdfREACH Conformiteitsverklaring MSL4141PP1000FT / 1123001 , 0.12MB , pdfRoHS Conformiteitsverklaring MSL4141PP1000FT / 1123001 , 0.13MB , pdf
