Nail tie with thread A4
Type FNAII 6x30M6/5A4
|Art.nr. 3499024
|EAN 4012197507374



Art.nr. / Type
3499024 / FNAII 6x30M6/5A4
Schroefdraad
M6
Kl. vpe: 50 Stuks
50Stuks
Stuks
Beschrijving

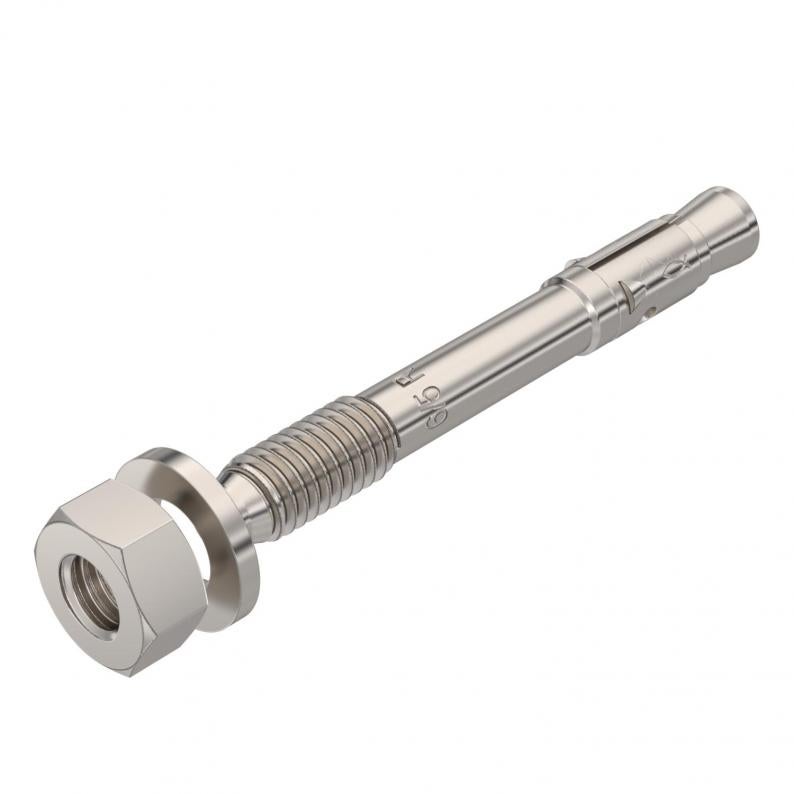

Nail tie with thread for the anchoring of, for example, fire protective products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer. When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
Technische gegevens
Afmetingen
| Lengte | 55 mm |
|---|---|
| Maat L | 55 mm |
Technische gegevens
| Schroefdraad metrisch | 6 |
|---|---|
| Schroefdraad | M6 |
| Zelfborend | nee |
| Toelatingen aanwezig | ja |
| Bevestigingsinrichting | Overige |
| Klemkracht | 10 mm |
| Uitvoering | Inslag |
| ROHS-conform | ja |
| Boringsdiameter min. | 6 mm |
| Boorgatdiepte | 45 mm |
| Dimensie | 6x50 |
| Materiaal | Roestvast staal |
| Kleur | roestvrij staal |
| Geschikt voor boumateriaal | Kalkzandsteen, Beton, Natuursteen |
| Montagetype plug, anker | Doorsteekmontage |
