- Productbeschrijving
-

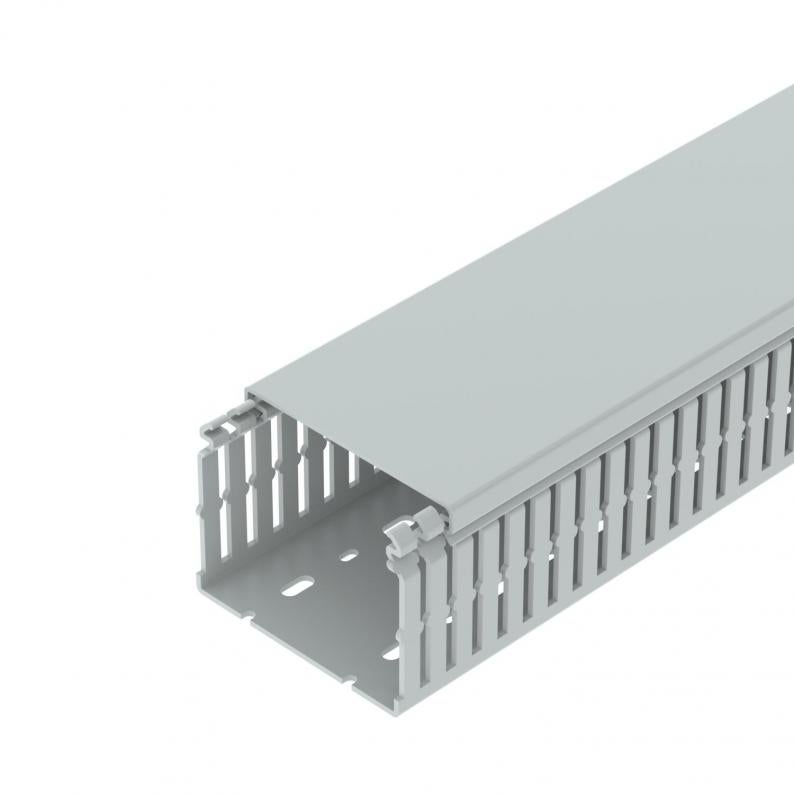

ProductbeschrijvingHalogen-free wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tapering in the side slots prevents the cables from falling out. Tested to DIN EN 50085-2-3. Special lengths on request.
-
- Technische gegevens
-

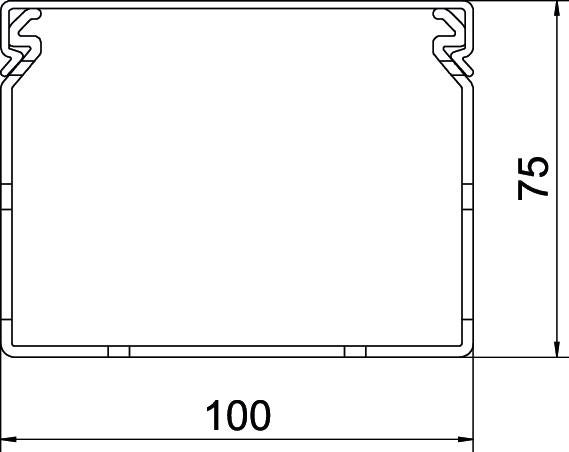

Afmetingen
Breedte 100 mm CO2-voetafdruk (GWP) van wieg tot poort 5,8363 kg CO2e / 1 Meter Dimensie 75x100x2000 Flexibel nee Halogeenvrij ja Hoogte 75 mm Kleur lichtgrijs; RAL 7035 Kruipstroomvast ja Lengte 2000 mm Materiaal Polycarbonaat/acrylnitriel-butadieen-styrol Met bovenstuk ja Nuttige doorsnede 65,34 cm² Sleufafstand 12,5 mm Sleufbreedte 5 mm Temperatuurbereik max. 90 °C Temperatuurbereik min. -25 °C Type bevestiging Bodemperforatie Uitvoering van de zijwand gesleufd zelfblussend ja - Alle typen
- Downloads
-
Specificatieblad LKVH N 75100 / 6178563 , 0.17MB , pdfBrochure Bedradingskokers , 2.10MB , pdfCatalogus Kabelinstallatiesystemen , 17.62MB , pdfEU Conformiteitsverklaring LKVH N 75100 / 6178563 , 0.13MB , pdfUK Conformiteitsverklaring LKVH N 75100 / 6178563 , 0.09MB , pdfREACH Conformiteitsverklaring LKVH N 75100 / 6178563 , 0.12MB , pdfRoHS Conformiteitsverklaring LKVH N 75100 / 6178563 , 0.12MB , pdfGoedkeuring VDE-goedkeuring LKVH , 0.55MB , pdfMontagehandleiding Montagehandleiding bedradingskoker LK4/LK4H/LKV/LKVH , 5.49MB , pdf
