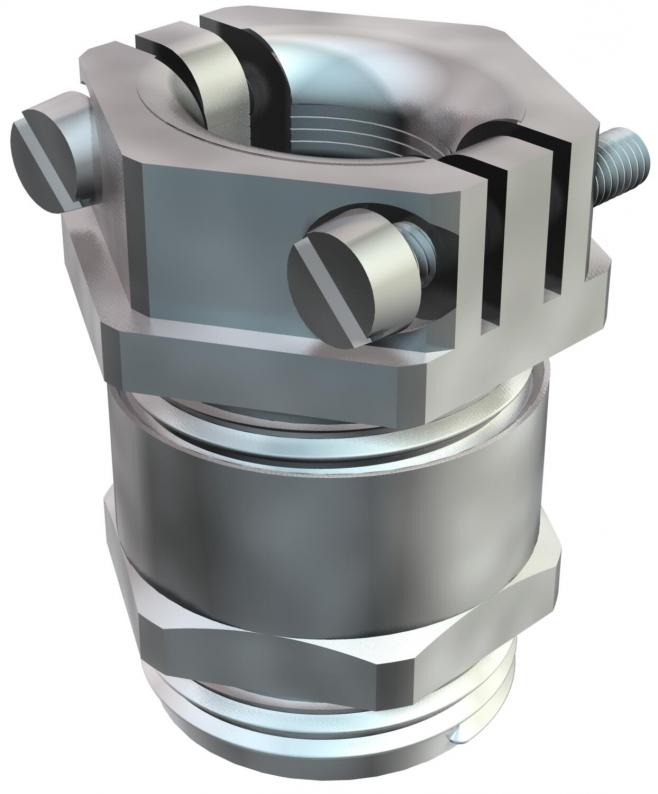

Conische wartel, PG-schroefdraad, trekontlasting, vernikkeld
Type 159 MS PG 7
|Art.nr. 2046075
|EAN 4012195181811



Art.nr. / Type
Schroefdraad
Kl. vpe: 50 Stuks
50Stuks
Stuks
Beschrijving
Wartel met centrisch werkende dwarsbeugeltrekontlasting in de drukschroef, knikbeveiliging van flexibele leidingen door middel van sterk afgeronde drukschroef.
Met PG-schroefdraad conform DIN 40430.
Drukringen staal, galvanisch verzinkt en transparant gepassiveerd.
Afdichtring van NBR/SBR.
Beschermingsgraad: met schroefdraadafdichtingsring IP65, zonder schroefdraadafdichtingsring IP54.
Met zeskanttussenstukken (als vorm C 4 conform DIN 46320).
* Prijzen volgens DEL-notering.
Met PG-schroefdraad conform DIN 40430.
Drukringen staal, galvanisch verzinkt en transparant gepassiveerd.
Afdichtring van NBR/SBR.
Beschermingsgraad: met schroefdraadafdichtingsring IP65, zonder schroefdraadafdichtingsring IP54.
Met zeskanttussenstukken (als vorm C 4 conform DIN 46320).
* Prijzen volgens DEL-notering.
Technische gegevens
Technische gegevens
| Slagvast | nee |
|---|---|
| Halogeenvrij | nee |
| Glasvezelversterkt | nee |
| Explosiebeveiligd | nee |
| Trekontlastingsmogelijkheid | ja |
| Beschermingsgraad | IP54 |
| Schroefdraad | Pg 7 |
| Voor Ex-zone | zonder |
| Soort schroefdraad | PG |
| Doorbuigbescherming | nee |
| Met borgmoer | nee |
| Meervoudig dichtingsinzetstuk | nee |
| Wartel voor platte kabel | nee |
| Soort afdichting | Dichtring |
| Afdichtbereik D min. | 5 mm |
| Afdichtbereik D max. | 7 mm |
| Sleutelwijdte | 14 |
| Lengte schroefdraad | 5 mm |
| Sleutelwijdte 1 | 14 mm |
| Sleutelwijdte 2 | 16 mm |
| Dimensie | PG7 |
| Oppervlak | vernikkeld |
| Materiaal | messing |
Afmetingen
| Afmeting L max. | 22 mm |
|---|---|
| Maat L1 | 5 mm |
| Maat L2 | 10 mm |
| Maat L3 | 9,3 mm |
| Afmeting e | 17,5 mm |
page.product.environmentalData.environmentalData
| Packaging without plastic | ja |
|---|
| CO2-voetafdruk (GWP) van wieg tot poort | 0,0489 kg CO2e / 1 Stuk |
|---|
Toebehoren
Montagetoebehoren
Artikel
Type
Art.nr.
Aantal
Downloads
0 geselecteerd
Specificatieblad (1)
Catalogi & brochures (1)
Verklaringen (4)
Productfoto's (2)
Uitvoeringen
Type
Schroefdraad
Art.nr.
159 MS PG 7
Pg 7
2046075
159 MS PG 9
Pg 9
2046091
159 MS PG11
Pg 11
2046113
159 MS PG13.5
Pg 13,5
2046121
159 MS PG16
Pg 16
2046164
159 MS PG21
Pg 21
2046210
159 MS PG29
Pg 29
2046296
159 MS PG36
Pg 36
2046369
159 MS PG42
Pg 42
2046423
159 MS PG48
Pg 48
2046482
