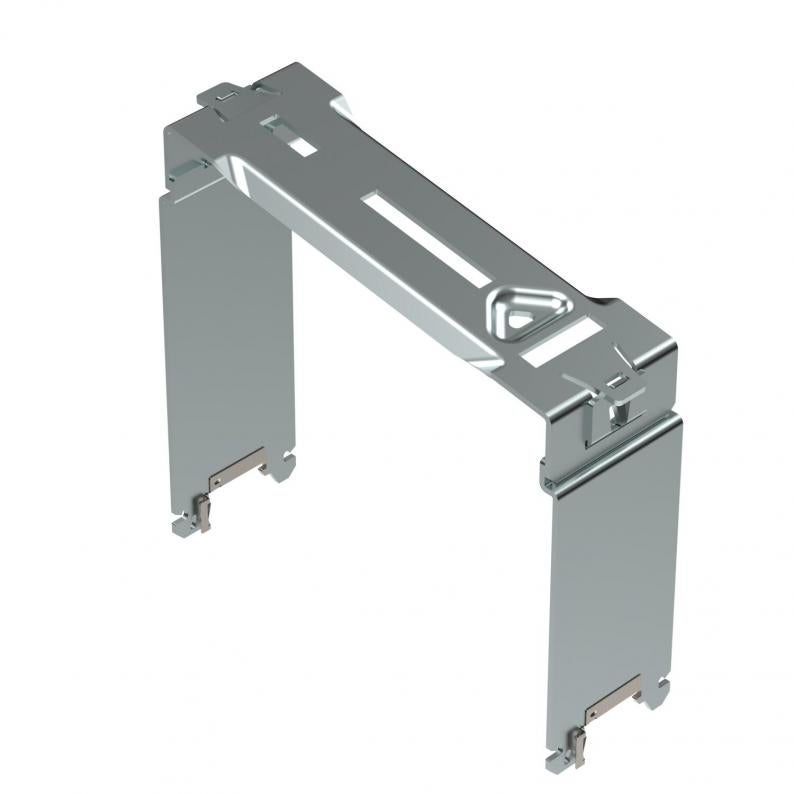

10° Long support for PV module mounting east-west orientation, flat roof
Type STLOW AD DD
|Art.nr. 5901667
|EAN 4012197516888
Art.nr. / Type
5901667 / STLOW AD DD
Kl. vpe: 8 Stuks
8Stuks
Stuks
Beschrijving
Long support for PV module mounting on flat roofs in east-west orientation. Mounting in combination with support profile TPF 35 and universal clamp KLU or end and connection clamps with springs (KLE F/KLZ F). Angle of inclination 10°. Lockable fastening on support profile.
Technische gegevens
Afmetingen
| Lengte | 283,1 mm |
|---|---|
| Breedte | 80 mm |
| Hoogte | 237,9 mm |
Technische gegevens
| Verstelbaar | nee |
|---|---|
| Hellinghoek min. | 10 ° |
| Hellinghoek max. | 10 ° |
| Dimensie | 283,1x80x237,9 |
| Oppervlak | bandverzinkt zink/aluminium, Double Dip |
| Materiaal | Staal |
| Kleur | zink |
| With module earthing | nee |
