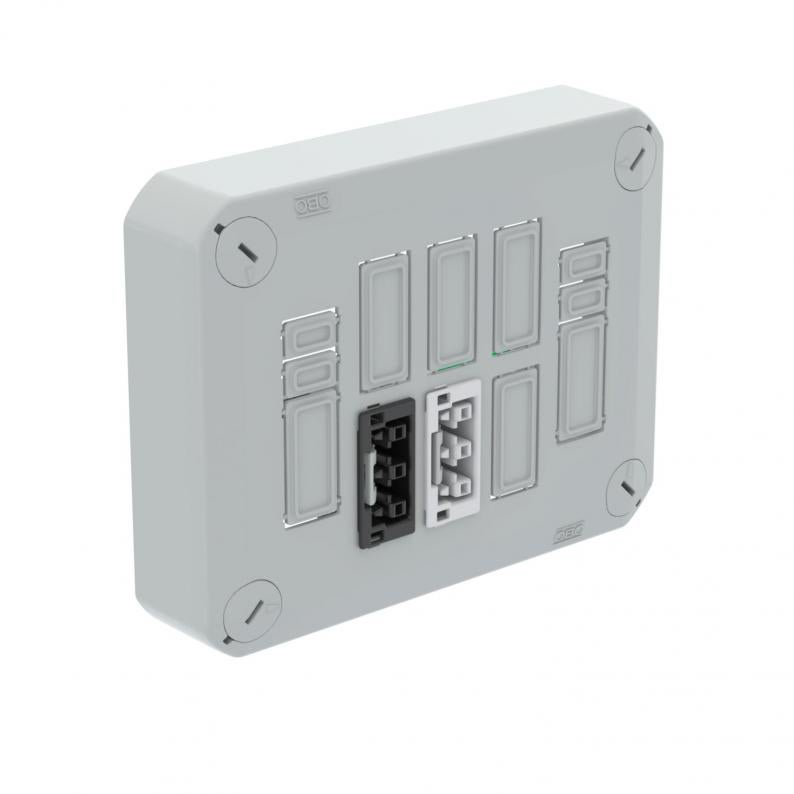

Pluggable cover, equipped, WAGO WINSTA
Type D01 2x3p WG(1+1)
|Art.nr. 2006045
|EAN 4012197488963
Art.nr. / Type
Kl. vpe: 1 Stuks
1Stuks
Stuks
Beschrijving
Pluggable cover for the closing of junction boxes, equipped with 2 WAGO WINSTA plug systems, 3-pole, prewired with lever plug-in connectors. With quick lock-in cover, sealable. Halogen-free material, UV-resistant. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30.
Technische gegevens
Technische gegevens
| ROHS-conform | ja |
|---|---|

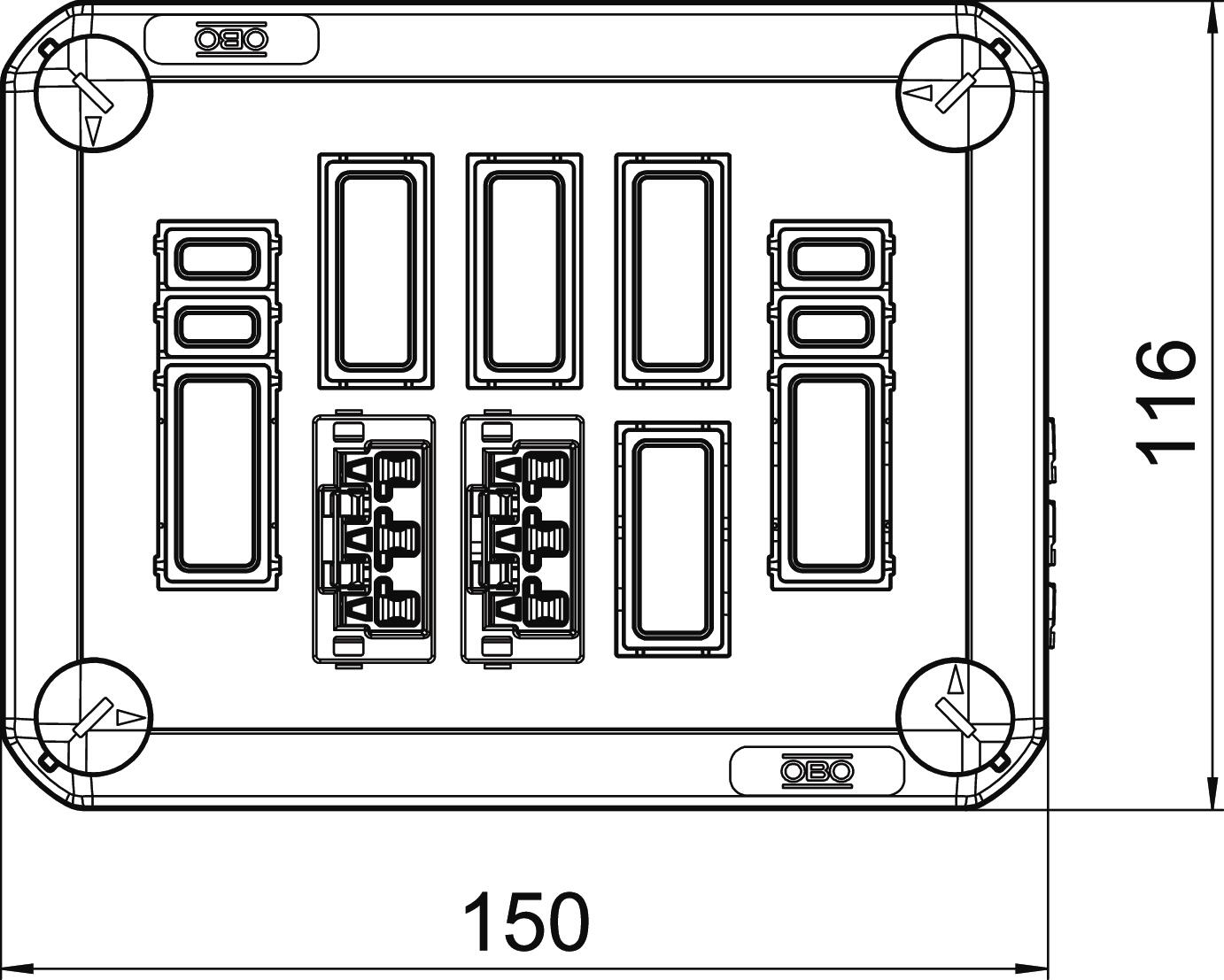

| Dimensie | 150x116x60 |
| Materiaal | Polypropyleen |
| Kleur | lichtgrijs; RAL 7035 |
| Productserie | T series |
Downloads
0 geselecteerd
Specificatieblad (1)
Verklaringen (2)
Productfoto's (2)
Uitvoeringen
Type
Art.nr.
D01 2x3p WG
2006043
D01 2x3p WG(1+1)
2006045
D01 3x3p WG
2006047
D01 4x3p WG
2006049
D01 4x3p WG(2+2)
2006051
D01 6x3p WG
2006059
D01 6x3p WG(4+2)
